100KG Payload Bump Test Machine / Bump Test Equipment For Electric Modules Shock Test

China 100KG Payload Bump Test Machine / Bump Test Equipment For Electric Modules Shock Test supplier
100KG Payload Bump Test Machine / Bump Test Equipment For Electric Modules Shock Test supplier 100KG Payload Bump Test Machine / Bump Test Equipment For Electric Modules Shock Test supplier

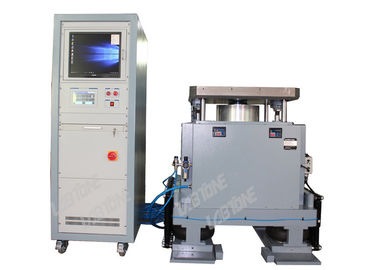

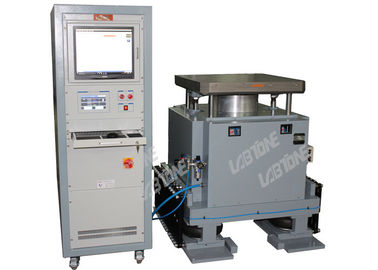

Large Image :  100KG Payload Bump Test Machine / Bump Test Equipment For Electric Modules Shock Test

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: SKM700

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 40 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Product Name: Bump Testing Equipmnts Payload: 100kg
Wave Form: Half Sine Pulse Acceleration Range: 5-100 G
Pulse Duration: 6-18ms Bump Repetition Frequency: 1-120Hz
Drop Height Range: 5-120mm Max Velocity Variation: 2.2m/s
Table Size: 700*800 Mm Standards: IEC , JIS

100KG Payload Bump Testing Equipmnts For Electric Modules Shock Test





Product Introduction



Components and other electronic and electrical products may experience repeating impact during transportation or use. Bump test can be used as a method to ensure the design structure is satisfying or as a quality assurance method. Specimen will experience regular peak acceleration and continuous impact with standard pulse during the bump test.





Specifications



Model SKM500 SKM700 SKM800 SKM1000
Table size(mm) 500*700 700*800 800*800 1000*1000
Payload(kg) 50 100 200 500
Wave form Half sine pulse
Acceleration range(G) 5-120 5-100 5-100 5-80
Pluse duration(ms) 6--18
Bump repetition frequency(Hz) 1-120 1-120 1-120 1-80
Drop height range(mm) 5-120 5-120 5-120 5-180
Max velocity variation(m/s) 2.2 2.2 2.6 2.8
Machine dimension(mm) 750*660*800 900*900*800 900*960*800 1200*1150*860
Machine weight(kg) 1000 1260 2160 3660
Power & Air supply AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder
Standards GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc





Packaging & Shipping



Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc





Services



Pre-sales:



  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:



  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:



  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.





FAQ



How do you attach the hardware you’re testing to your shaker?

By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.



How do you control shakers?

If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.



What are those resonances?Are they bad?

Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
