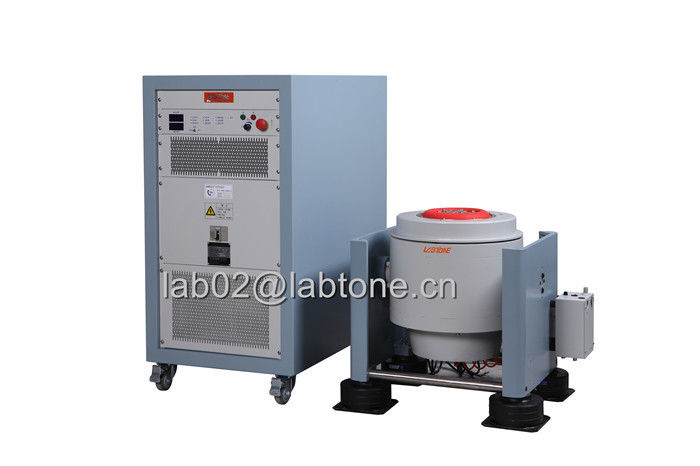

High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock

High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock
High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock

Large Image :  High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE,ISO
Model Number: EV203
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: International Wooden case
Delivery Time: 45 working days

High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock

Description
Name: High Frequency Small Electrodynamic Shaker With Head Expander 400 X 400mm In Stock Sine Force: 300kg.f(3kN)
Shock Froce: 600kg.f(6kN) Displacement: 40mm
Armature Mass: 3kg Cooling Method: Air-Cooling
High Light:

vibration testing equipment

,

dynamic testing equipment

High Frequency Small Electrodynamic Shaker With Head Expander 400 x 400mm In Stock



Vibration Test System Capabilities



  • Sine: 300 kgf (peak)
  • Random: 300 kgf (rms)
  • Shock: 600 kgf (peak)
  • Frequency range: 5 Hz to 4000 kHz
  • Maximum Velocity: 2.0m/s
  • Maximum Acceleration: 100 G (half sine) with a bare armature
  • Maximum payload: 120 kg
  • Maximum displacement: Shock: 40 mm (p-p)



Vibration Test SystemSpecification:



Model
EV103
EV203
EV106
EV206
EV210
EV220
Frequency(Hz)
2-4000
2-2500
2-3000
2-3000
2-3000
2-2500
Max Exiting Force(kg.f)
300
300
600
600
1000
2000
Max. Displacement
(mmp-p)
25
38
25
50
50
50
Max. Acceleration(g)
100
100
100
100
100
100
Max. Velocity(cm/s)
200
120
180
200
200
200
Payload(kg)
110
120
200
200
300
400
Armature Mass(kg)
3
3
6
6
10
20
Armature Diameter(mm)
φ150
φ150
φ200
φ200
φ240
φ320
Cooling Method
Forced Air Cooling
Vibration Generator Weight(kg)
460
460
720
920
1100
1600
Vibration Generator Dimension L*W*H(MM)
750*560*670
750*555*670
800*600*710
800*600*710
845*685*840
1200*870*1100
Power Amplifier
Amp3k
Amp3k
Amp6k
Amp6k
Amp12k
Amp22k
Cooling Method
Forced Air Cooling
Power Amplifier Weight(kg)
250
250
320
320
350
500
Power Amplifier Dimension L*W*H(MM)
800*550*1250
Utility Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)
8
9
18
20
25
35



Vibration Test System Main Features



1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.

2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.

3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic     distortion.

4) Quick self-diagnosis with safety interlock, high safety reliability

5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance

6) Horizontal and vertical expansion platforms for different applications

7) Simple controller operation



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales Service

  • Training how to instal the machine, training how to use the machine.
  • Engineers available to service machinery overseas.



Vibration Test System Images:



High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock 0High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock 1High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock 2

High Frequency Small Electrodynamic Vibration Shaker Head Expander 400 x 400mm In Stock 3
