CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM)

Certification
China Labtone Test Equipment Co., Ltd certification
China Labtone Test Equipment Co., Ltd certification
Customer Reviews
We are very pleased with the quality of service your company provides.

—— Dovbysh

We sincerely appreciate your responsiveness and the way you conduct business.

—— John

We have recommended your company to others because of our satisfaction with your service. We look forward to doing business with you for years to come

—— Alex

We are very satisfied with the quality of the tester!

—— Jochen

I'm Online Chat Now

CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM)

CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM)
CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM) CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM) CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM)

Large Image :  CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM)

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: YST500
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International Plywood Case
Delivery Time: 30 Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM)

Description
Payload: 500 Kg Table Size: 1200 X 1500
Adjustable Frequency: 2~5Hz(120~300)RPM Fixed Amplitude: 1 Inch (25.4MM)
Vibration Pattern: Rotation, 30° Unbalance Vibration(asynchronous) Power Supply: AC 380V±10% 50/60Hz
Name: Ce Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 Inch (25.4MM)
High Light:

vibration shaker table systems

,

mechanical vibration testing

CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM)





General Introduction


Transportation Simulator is used in laboratory to simulate the truck transportation situation on different road conditions. The purpose is to inspect and estimate the performance of packaging in such conditions.



Features

  • Precise digital display for the vibration frequency
  • Synchronous low noise wide belt drive mechanism
  • Guide Rail type fixture for specimen, easy to operate
  • Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
  • Rotational Vibration method complies with international test standard
  • Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.





Mechanical Shaker Specifications



Model YST100 YST200 YST500 YST1000 YST2000

Max Payload(kg)
100 200 500 1000 2000
Table Size(mm)

1000x1200 1200x1200 1200x1500 1500x1500 1500x1500
Frequency Range 2~5Hz(120~300)RPM
Displacement 25.4mm Fixed
Test Motions Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz





































Company profile:



Labtone Test Equipment Co., Ltd. is a +16 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.



Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

We sincerely invite you to visit our factory.





 Services:

Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.



 Detailed pictures

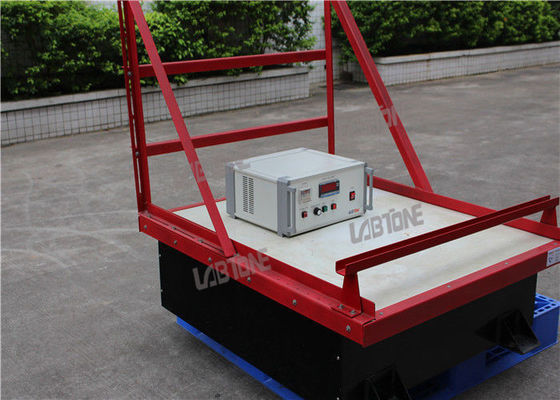

CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM) 0

CE Certified Mechanical Shaker Table With 500kg Payload Fixed Amplitude 1 inch (25.4MM) 1
