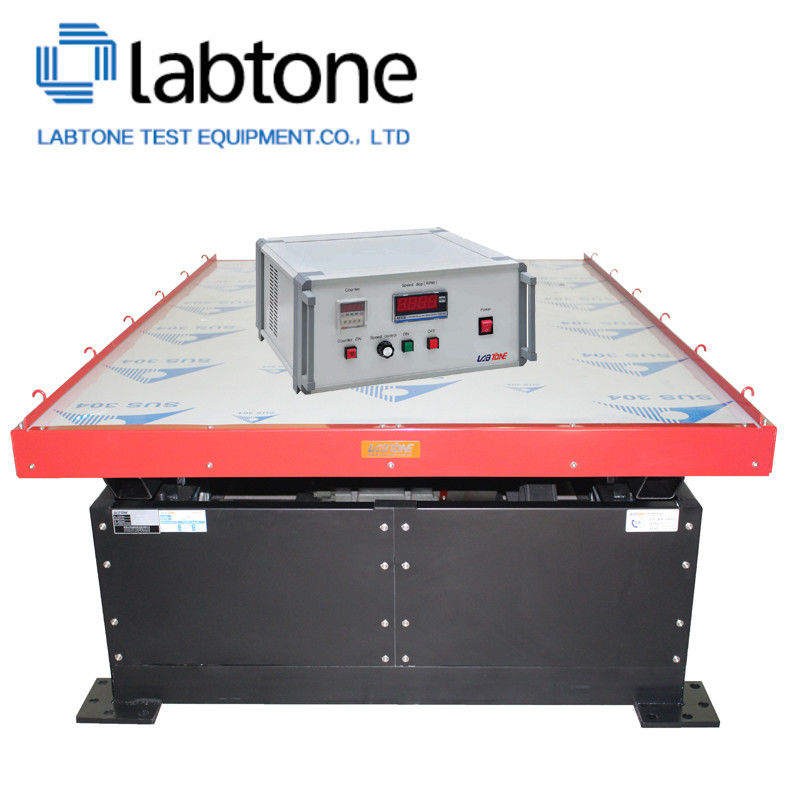

120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards

China 120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards supplier
120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards supplier 120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards supplier 120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards supplier

Large Image :  120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: YST500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International Plywood Case
Delivery Time: 30-35 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Payload: 500kg Table Size: 1200 X 1500
Frequency: 2~5Hz(120~300)RPM Amplitude: 1 Inch (25.4MM) Fixed
Vibration Pattern: Rotation, 30° Unbalance Vibration(asynchronous) Power Supply: AC 220V±10% 50Hz



120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards​



Tranportation Simulation

Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.



YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes





Specifications



Model YST100 YST200 YST500 YST1000 YST2000

Max Payload(kg)

100 200 500 1000 2000

Table Size(mm)

1000x1200 1200x1200 1200x1500 1500x1500 1500x1500
Frequency Range 2~5Hz(120~300)RPM
Displacement 25.4mm Fixed
Test Motions Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz





Features

  • Precise digital display for the vibration frequency.
  • Synchronous low noise wide belt drive mechanism.
  • Guide Rail type fixture for specimen, easy to operate.
  • Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
  • Rotational Vibration method complies with international test standard.
  • Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.



Operating mode


120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards



Customer Services:



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.



Compnay Profile:



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

We sincerely invite you to visit our factory.





Detailed Pictures:

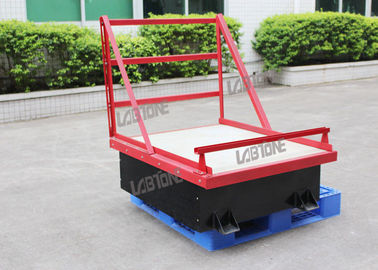

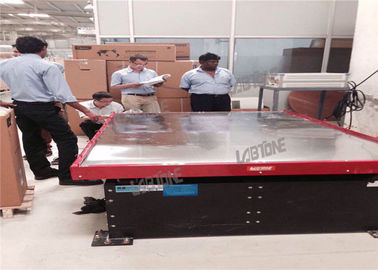

120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards



120~300 RPM Vibration Tester with 1 inch Fixed Amplitude Meets ISTA Standards
