Product Details:
|
| Sine Force: | 1100kg.f(11kN) | Random Force: | 1100kg.f(11kN) |
|---|---|---|---|
| Shock Froce: | 2200kg.f(22kN) | Displacement: | 51mm |
| Max Acceleration: | 100g | Payload: | 300kg |

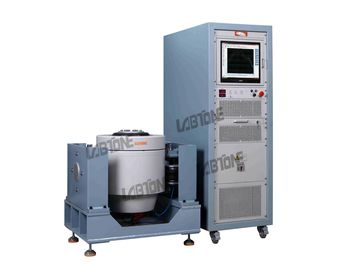

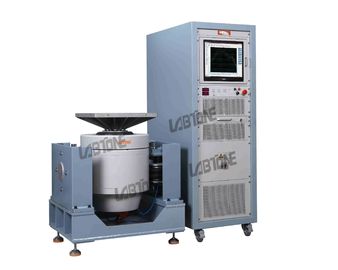

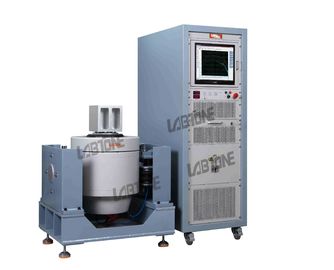

| Name: | Vibration Test Machine For Capacitors, Resistors, And Batteries Meeting UN38.3 | ||
| High Light: | shaker testing device,industrial shaker table |
||
Vibration testing plays a crucial role in evaluating the durability and performance of batteries. With the increasing demand for high-quality energy storage solutions, it is vital to ensure that batteries can withstand the rigors of transportation, usage, and other dynamic environments.
Our solution encompasses state-of-the-art vibration testing equipment and specialized protocols. Our advanced vibration test systems can replicate real-world conditions, enabling a thorough assessment of battery resilience and performance. We provide a wide range of vibration profiles, including random, sinusoidal, and high-g shock testing, to simulate diverse operating environments.
By choosing us as your partner for battery vibration testing, you can have confidence in the reliability and durability of your products. Our comprehensive solution helps identify potential weaknesses, design flaws, and performance limitations, allowing you to optimize battery design and enhance overall product quality.
Contact us today to learn more about our battery vibration testing solutions and how we can assist you in ensuring the superior performance and safety of your batteries.
| Item | Configuration | Qty. |
| A | Vibration shaker | |
| A11S24 shaker ((including Pneumatic Centering Controller) | 1 set | |
| B402S blower (including silencer and Duct ) | 1 set | |
| Horizontal slip table HG50M | 1 set | |
| Head Expander VT40CM | 1 set | |
| B | Power Amplifier | |
| LA10K power amplifier(including Field power supply) | 1 set | |
| C. |
Vibration Controller-Vcs-4 (Including Hardware and Control Functions Program software CDS |
|
| Accelerometer (Including Length 7m low noise BNC-M5 cable) | 1 set | |
| Computer(Including keyboard, mouse and monitor) | 0 set | |
| D |
Documentation Operation Manual, Test Report, Packing List |
1 set |
| E | Accessories | |
| Maintenance Tools | 1 set | |
| Standard Spare Parts | 1 set |
| Shaker Specifications | |
| Peak Sine (Pk) | 1100Kg.f peak (11KN) |
| Random (RMS) | 1100Kg.f rms (11KN) @ISO5344 |
| Shock (Pk) | 2200Kg.f peak (22KN) @6ms |
| Usable Frequency | DC～3300Hz |
| Maximum Displacement (p-p) | 51mm (2inch) |
| Max. velocity | 2m/s |
| Max. acceleration | Sine:100g (980 m/s2)；Random: 60G (588 m/s2) |
| Vertical Load Support | 300 kg@0.7 MPa |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф240 mm |
| Armature Weight | 11kg |
|
Fundamental Resonance Frequency (Bare table) |
2,600 Hz (nom.) +/- 5% |
|
Load Attachment Points (Standard) |
16 stainless steel M10 Inserts |
| Stray Flux Density | ＜10gauss |
| Shaker dimensions | 885X745x785mm |
| Weight of Shaker | 1300kg |
| Power Amplifier Specifications LA10K | |
| Rated Output Capacity | 10KVA |
| Signal to Noise Ratio | Greater than 65 dB |
| Amplifier Efficiency | Greater than 90% |
| Amplifier Overall Dimensions | 615mmL×920mmD×1520mmH |
1) The rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High-efficiency D class power switching, 3-sigma peak current, low power consumption, and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation
* Technical consultation: test method, laboratory planning, and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
