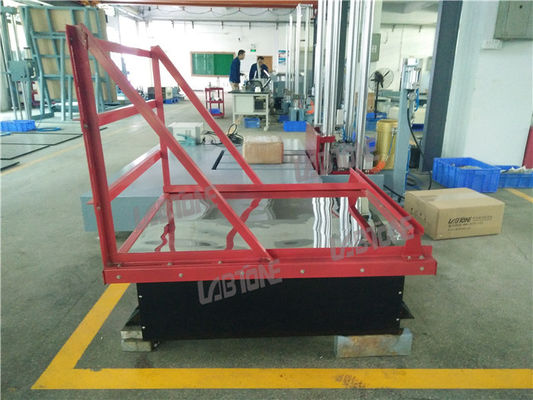

100kg Payload Vibration Tester Transporation Simulator Rotary Motion Meet ISTA 1a, 2a

Large Image : 100kg Payload Vibration Tester Transporation Simulator Rotary Motion Meet ISTA 1a, 2a

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	YST100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	International Plywood Case
Delivery Time:	30-35 Work Days
Payment Terms:	T/T, L/C
Supply Ability:	15 Sets / Month

Contact Now

100kg Payload Vibration Tester Transporation Simulator Rotary Motion Meet ISTA 1a, 2a

Description

Payload:	100 Kg	Table Size:	1200 X 1000
Frequency:	2~5Hz(120~300)RPM	Amplitude:	1 Inch (25.4MM) Fixed
Vibration Pattern:	Rotary	Power Supply:	AC 380V±10% 50Hz
High Light:	vibration shaker table systems , mechanical vibration testing

100kg Payload Vibration Tester Transporation Simulator Rotary Motion Meet ISTA 1a, 2a

Description and Application

Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.

YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes

Specifications

Model	YST100	YST200	YST500	YST1000	YST2000
Max Payload(kg)	100	200	500	1000	2000
Table Size(mm)	1000x1200	1200x1200	1200x1500	1500x1500	1500x1500
Frequency Range	2~5Hz(120~300)RPM
Displacement	25.4mm Fixed
Test Motions	Rotary (Synchronous)
Power Supply	AC220V±10% 50Hz		3-phase 380V±10% 50Hz

Features

Precise digital display for the vibration frequency.
Synchronous low noise wide belt drive mechanism.
Guide Rail type fixture for specimen, easy to operate.
Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
Rotational Vibration method complies with international test standard.
Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.

Operating mode

100kg Payload Vibration Tester Transporation Simulator Rotary Motion Meet ISTA 1a, 2a 2
