Manufacturer Price Electrodynamic Vibration Shaker With 600kg Sine Force

China Manufacturer Price Electrodynamic Vibration Shaker With 600kg Sine Force supplier
Manufacturer Price Electrodynamic Vibration Shaker With 600kg Sine Force supplier Manufacturer Price Electrodynamic Vibration Shaker With 600kg Sine Force supplier Manufacturer Price Electrodynamic Vibration Shaker With 600kg Sine Force supplier

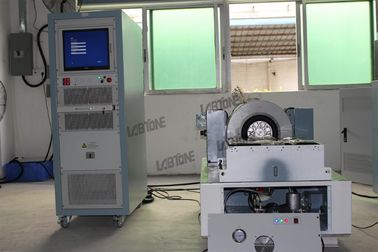

Large Image :  Manufacturer Price Electrodynamic Vibration Shaker With 600kg Sine Force

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV206

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Vibrator Model: VG600/50 Vibrator Weight: 920 Kg
Vibrator Dimension: 800 X 600 X 710 Mm Cooling Method: Air Cooling
Power Amplifier Weight: 320 Kg Power Amplifer Dimension: 800 X 550 1250 Mm



Vertically And Horizontally Vibration Shaker Test Machine 600kg Rated Force​





Introduction



EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.



A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.



Electrodynamic Shaker Capabilities

  • Sine Force: 600 kgf (peak)
  • Random Force: 600 kgf (rms)
  • Shock Force: 1,200 kgf (peak)
  • Frequency range: 1 Hz to 3000 Hz
  • Maximum Velocity: 2.0 m/s
  • Maximum Acceleration: 100 G (half sine) with a bare armature
  • Maximum payload: 200 kg
  • Maximum displacement: 50 mm (p-p)


Features

  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
  • Quick self-diagnosis with safety interlock, high safety reliability;
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;

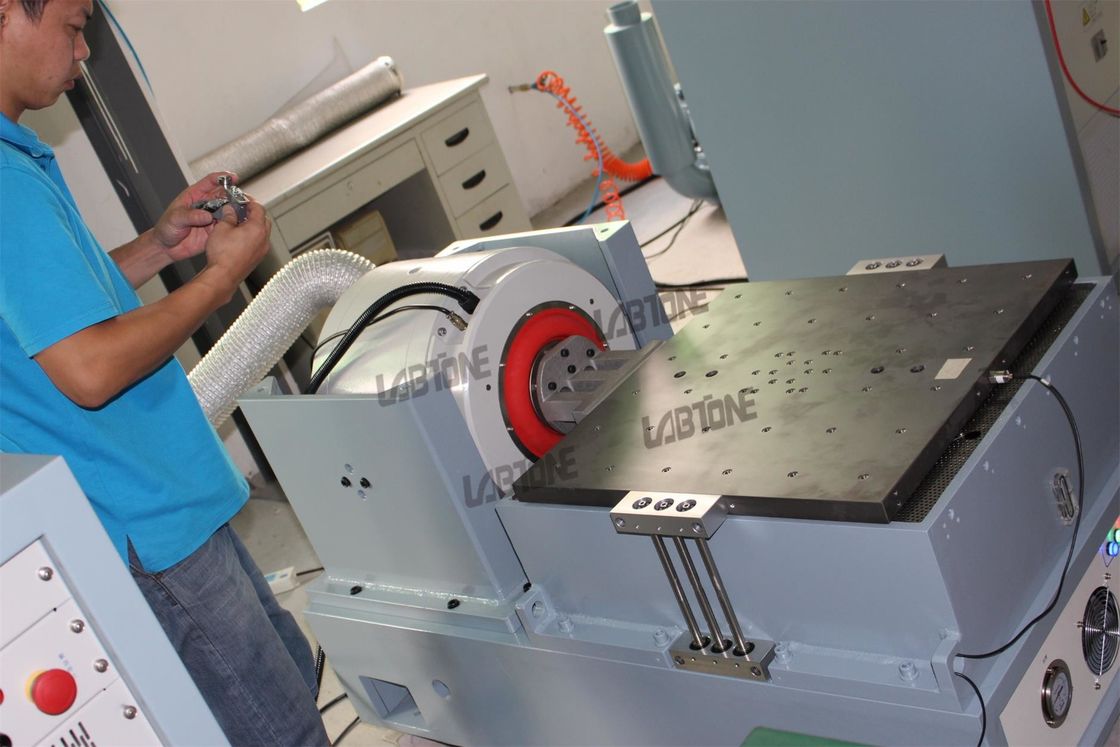

  • Provide horizontal and vertical expansion platform for different application;
  • Simple controller operation.



Working Principle



Manufacturer Price Electrodynamic Vibration Shaker With 600kg Sine Force





Specifications: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 1-2500 1-3000 1-3000 1-3000
Max Exiting Force(kg.f) 300 600 1000 2000
Max. Displacement (mmp-p) 38 50 50 50
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 200 200 200 200
Payload(kg) 120 200 200 300
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35



Our Services



Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer label
