Low Price Vibration Test Machine, Vibration Test Table For PCB board Test

China Low Price Vibration Test Machine, Vibration  Test Table For PCB board Test supplier
Low Price Vibration Test Machine, Vibration  Test Table For PCB board Test supplier Low Price Vibration Test Machine, Vibration  Test Table For PCB board Test supplier Low Price Vibration Test Machine, Vibration  Test Table For PCB board Test supplier

Large Image :  Low Price Vibration Test Machine, Vibration Test Table For PCB board Test

Product Details:

Place of Origin: China
Brand Name: Labtone
Certification: CE
Model Number: RV3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 30-35 Work Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Frequency: 5-100 Hz Displacement: 0-3 Mmp-p
Acceleration Range: 0-11g(peak) Max. Payload: 130 Kg
Table Dimention: 600 X 500 Mm Waveform: Sine



Low Price Vibration Test Machine, Vibration Test Table For PCB board Test





Principle Introduction



Our mechanical vibration table has three testing functions, namely vibration test under particular frequency, frequency sweep test, and multi-stage random test. These three test functions enable users to perform various tests on their products, such as vibration function test, vibration endurance test, package transportation test, resonance search, resonance dwell, stress screening and fatigue test.



Mode of vibration test under particular frequency: After setting a certain test frequency point, amplitude and test time, the vibration tester can carry out test as per set conditions until the end of test time, and its operating mode is shown in Figure a. Besides, test can be conducted unless the test frequency and amplitude are within the performance curve of the vibration tester table.



Frequency sweep test mode: After setting a start frequency, stop frequency, test amplitude and frequency sweep time, the vibration tester will gradually increase or decrease the vibration frequency from the start frequency to the stop frequency, and the frequency sweep speed is determined by the frequency sweep time. Its operating mode is shown in Figure b. Besides, test can be conducted unless the test frequency and amplitude are within the performance curve of the vibration tester table.



Multi-stage random test mode: After respectively setting multiple (at most ten stages) test frequencies and test durations (each stage can be deemed as a vibration test under particular frequency), and a certain amplitude, the vibration tester can carry out test in the set order. Its operating mode is shown in Figure c. Similarly, test can be conducted unless the test frequency and amplitude are within the performance curve of the vibration tester table.





Features

1, Using centrifugal excitation method, low mechanical noise.
2, Using synchronous reverse movement, excellent table evenness.
3, Stepless amplitude adjustment, meet different product test requirements.
4, Use-friendly operation control interface.
5, Fixed with shock absorption bags without special foundation.



Specifications


Model RV3000
Table Size(L×W) 600 x 500mm
Freq. Range(Hz) 5--100 Hz
Disp. (mmp-p) 0—3 p~p
Acc. Range 0--11 G
Max. Payload(kg) 130 kg
Wave Form Sine pulse
Vibration Direction Vertical
Power Supply AC 220V /50Hz
Machine Dimension 765*525*690mm
Machine Weight 250kg





FAQ



1. Q: What is your warranty ?

  • 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

2. Q: How-to vedio provided ?

  • Yes, if required, our engineers will record a specialize how-to video for you.

3. Q: Is the machine made in your own plant ?

  • Yes, welcome to visit our plant(factory), also we support OEM and ODM.

4. Q: What about the quality ?

  • Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
  • All of our machine are strictly according to CE & ISO standards.

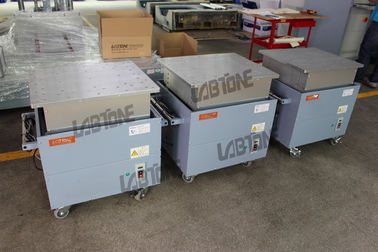

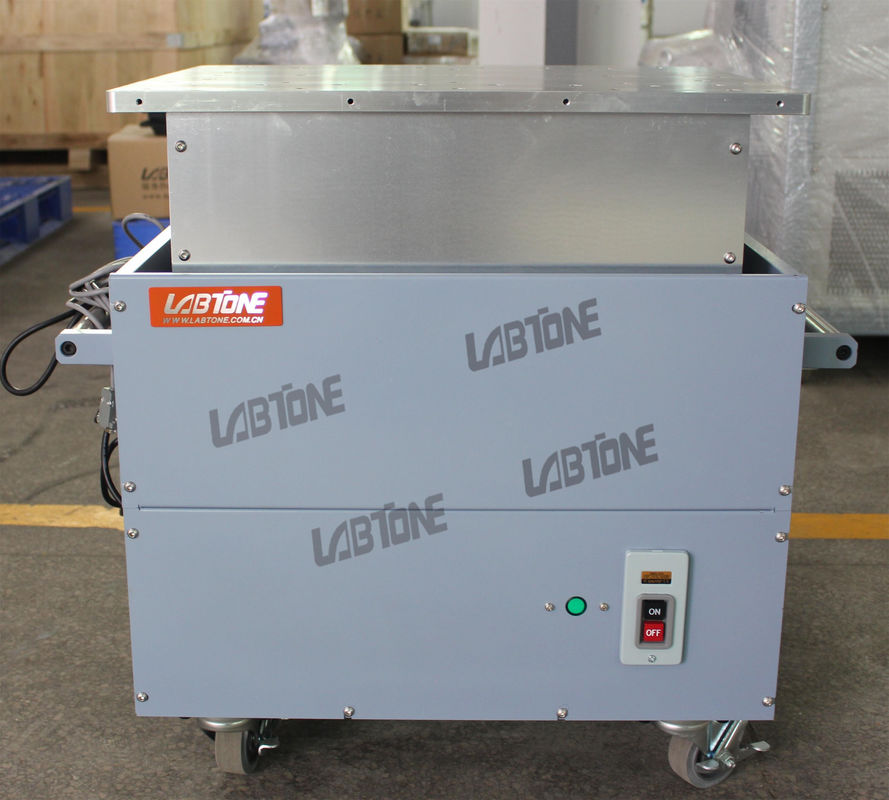

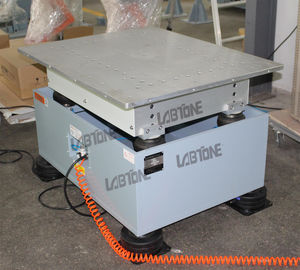

Detailed Pictures:



Low Price Vibration Test Machine, Vibration  Test Table For PCB board Test



Low Price Vibration Test Machine, Vibration  Test Table For PCB board Test
