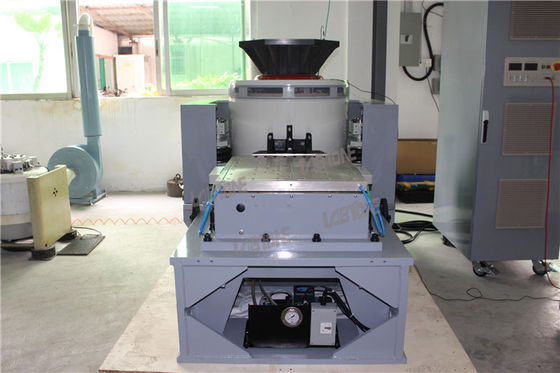

32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test

32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test
32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test 32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test 32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test

Large Image :  32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV232
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test

Description
Sine Force: 3200 Kg(32kN) Shock: 6400kg(64kN)
Maximum Displacement: 51 Mm Power Amplifier: Amp35k
Amature Diamter: Dia 400 Armature Mass: 30kg
Name: 32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test
High Light:

shaker testing device

,

vibration table testing equipment

32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test







Product Application
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.


Type Selection Formula of Vibrator and Structural Diagram of vibration shaker


In selecting a suitable vibration test system, It is important to properly define the required exciting force , for performing a vibration test.
Take the following test conditions into account and calculate the required exciting force to judge raged capabilities of the vibration test system.

Would you please let us know the following test conditions ?

Frequency range ?
Max. acceleration ?
Mass of test article and fixture ?
Max. size of test sample and fixture ?


Electrodynamic Shaker Specifications:


Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35



Main Features

1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.

2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.

3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.

4) Quick self-diagnosis with safety interlock, high safety reliability

5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance

6) Horizontal and vertical expansion platforms for different applications

7) Simple controller operation



Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.




Workshop:



32kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test 032kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test 132kN Vibration Test Machine Performed 3axis XYZ Direction Random Vibration Test 2
