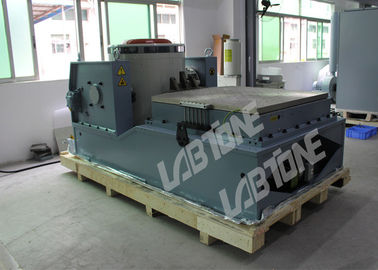

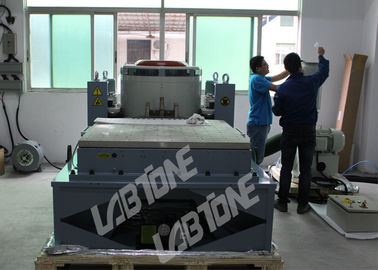

5000Kg.f Exciting Force Vibration Testing Systems for Laboratory Testing Comply To CE Standard

5000Kg.f Exciting Force Vibration Testing Systems for Laboratory Testing Comply To CE Standard
5000Kg.f Exciting Force Vibration Testing Systems for Laboratory Testing Comply To CE Standard 5000Kg.f Exciting Force Vibration Testing Systems for Laboratory Testing Comply To CE Standard

Large Image :  5000Kg.f Exciting Force Vibration Testing Systems for Laboratory Testing Comply To CE Standard

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV350
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now

5000Kg.f Exciting Force Vibration Testing Systems for Laboratory Testing Comply To CE Standard

Description
Product Name: Vibration Tester Equipment Max Acceleration: 100 G
Max Velocity: 200 Cm/s Frequency Range: 2-2500 Hz
Max Displacement: 76 Mm Power Supply: 3-phase AC 380V±10% 50Hz
Sine Force Peak: 49 KN (5000 Kg.f) Armature Weight: 50kg
Highlight:

shaker testing device

,

vibration table testing equipment

5000Kg.f Exciting Force Vibration Testing Systems for Laboratory Testing Comply To CE Standard​





Industry Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.





Applications:



  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screenin





Specifications: EV260-EV420



Model EV260 EV320 EV330 EV340 EV350 EV420
Vibration Generator VG6000/50 VG2000/76 VG3000/76 VG4000/76 VG5000/70 VG2000/100
Frequency(Hz) 2-2500 2-3000 2-2500 2-2500 2-2500 2-3000
Max Exiting Force(kg.f) 6000 2000 3000 4000 5000 2000
Max. Displacement (mmp-p) 50 76 76 76 76 100
Max. Acceleration(g) 100 80 85 80 100 90
Max. Velocity(cm/s) 200 200 200 200 200 200
Payload(kg) 1000 1000 1000 1000 1000 500
Armature Mass(kg) 50 25 35 50 50 23
Armature Diameter(mm) φ450 φ320 φ320 φ440 φ440 φ320
Cooling Method Forced Air Cooling
Shaker Weight(kg) 3800 2000 3000 3500 3800 2000
Shaker Dimension L*W*H(MM) 1600*1120*1340 850*1000*1100 1100*1300*1440 1100*1300*1520 1100*1300*1520 850*1000*1100
Power Amplifier Amp70k Amp30k Amp45k Amp55k Amp70k Amp35k
Power Amplifier Weight(kg) 1000 550 600 800 900 550
Power Amplifier Dimension L*W*H(MM) 800*550*1920 800*550*1920 800*550*1920  800*550*1920 800*550*1920 800*550*1920
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 95 40 60 80 90 45





Features:



  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
  • Quick self-diagnosis with safety interlock, high safety reliability;
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
  • Provide horizontal and vertical expansion platform for different application;
  • Simple controller operation.





Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification





Product Detail:



5000Kg.f Exciting Force Vibration Testing Systems for Laboratory Testing Comply To CE Standard 0
