Low Cost 100kg Payload Mechanical Vibration Testers Lab Vibration Table

Low Cost 100kg Payload Mechanical Vibration Testers Lab Vibration Table
Low Cost 100kg Payload Mechanical Vibration Testers Lab Vibration Table Low Cost 100kg Payload Mechanical Vibration Testers Lab Vibration Table Low Cost 100kg Payload Mechanical Vibration Testers Lab Vibration Table

Large Image :  Low Cost 100kg Payload Mechanical Vibration Testers Lab Vibration Table

Product Details:
Place of Origin: China
Brand Name: Labtone
Certification: ISO , CE
Model Number: RV3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 30-35 Work Days
Supply Ability: 15 Sets / Month

Low Cost 100kg Payload Mechanical Vibration Testers Lab Vibration Table

Description
Name: Low Price 100kg Payload Mechanical Vibration Testers Lab Vibration Table Vibration Table (mm): 600 X 500
Vibration Direction: Up / Dowm Frequency Range: 5-100 Hz
Adjustable Displacement Range: 0-3mmP-P Acceptable Acceleration Range: 0-11G
Max.Loading Weight: 130KG Operation Mode: Fixed /Random/Sweep
Power Source: AC 220V 50/60Hz
High Light:

vibration shaker table systems

,

vibration shaker table

Low price 100kg Payload Mechanical Vibration Testers Lab Vibration Table









Mechanical Vibration Testers Specification



Model
RV3000
Vibration Table (mm) Lx W
600 x 500
Frequency Range
5-100 Hz
 Adjustable Amplitude (mmp-p)
0-3
Acceleration Range
0-11G
Max.Payload (kg)
130
Control Interface
IBM PC Serial port Rs232 9P/USB Port
Test Method
Fixed frequency,Sweep frequency(linear/logarithm),
multi-stage random
Waveform
Sine Wave
Vibration Direction
Up / Down
Power Supply
AC220V 50/60Hz





Mechanical Vibration Testers simulates vibration during transport for electronic products, components, spare parts, electromechanical products, and instrumentation, etc. Its vibration and reliability tests comply with the GB, UL, IEC and other standards.



Mechanical Vibration Testers Main Features



1) Using centrifugal excitation method, low mechanical noise.

2) Using synchronous reverse movement, excellent table evenness.

3) Stepless amplitude adjustment, meet different product test requirements.

4) Use-friendly operation control interface

5) Fixed with shock absorption bags without special foundation.



Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.





Company profile



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.



Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty and are available directly from our factory in Dongguan, China. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having a qualified staffs of and experts to  solve your problems.



We sincerely invite you to visit our factory.

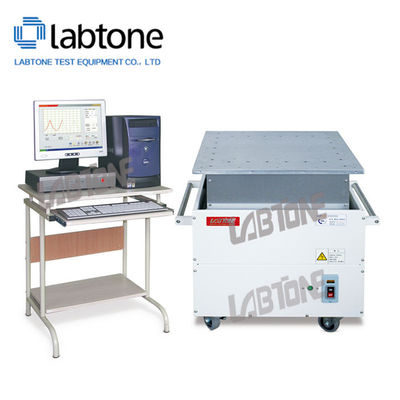

Mechanical vibration tester images



Low Cost 100kg Payload Mechanical Vibration Testers Lab Vibration Table 0



Low Cost 100kg Payload Mechanical Vibration Testers Lab Vibration Table 1
