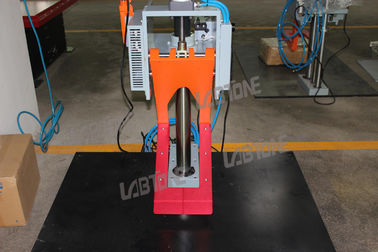

ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test

ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test
ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test
ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test

Large Image :  ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: DT150
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: International plywood case, Cartone size: 1700 x 1200 x 2350 mm
Delivery Time: 35-45 days
Payment Terms: T/T
Supply Ability: 50 Sets / Month

ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test

Description
Drop Height: 300-1500mm Package Weight: 85kg
Package Size: 800*800*800mm Drop Mode: Free Fall Drop
Machine Dimension: 1500*1000*2150mm Machine Weight: 480kg
Warranty: 12 Months Power Supply: AC220V 50Hz
Highlight:

package testing services

,

drop test equipment



ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test

Packaging Drop Tester DT150 technical specificatio...




Introduction

Packaging drop test is used to determine the effect of impact on the package during use, transportation, loading and unloading. The strictly designed LABTONE “1G+” ensures its accuracy. Apart from accurate plane fall test, it can also perform edge drop and corner drop test to make a complete evaluation on the performance of packaging and product.

Specifications


Model DT150 DT200
Drop height range (mm) 300-1500 300-2000
Specimen max.weight (kg) 85 85
Specimen max. size (mm) 800*800*800 800*800*800
Drop mode Freedom
Machine Dimension (mm) 1500*1000*2150 1700*1200*2750
Machine weight (kg) 480 550
Power supply AC220V 50Hz compressed air 0.5~0.7Mpa
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27




Features

  • Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
  • Can perform surfaces, corner and edge drops.
  • Precise guiding system and pneumatical driving
  • Unique swing arm structural design, escape acceleration of swing arm greater than 3G.
  • With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm such that the movement is stable, reliable with low noise.
  • Self-locking screw in lifting mechanism to prevent accidental downward glide.
  • Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
  • Extensible support bracket and bottom slab.


Equipment Components


No. Equipment name Model Qty. Description
1 Machine DT150 1 set
2 Control handle   1 set
3 Auxiliary edge and angle clamps   1 set
4 Connecting cable/duct hose   1 set



FAQ


1. Q: What is your warranty ?

  • 12 months product warranty. Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

2. Q: How-to vedio provided ?

  • Yes, if required, our engineers will record a specialize how-to video for you.

3. Q: Is the machine made in your own plant ?

  • Yes, welcome to visit our plant(factory), also we support OEM and ODM.

4. Q: What about the quality ?

  • Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
  • All of our machine are strictly according to CE & ISO standards.



Packaging


ISTA 6A Amazon Packaging Drop Test Machine With Payload 85kg Free - fall Drop Test 0
