Product Details:
|
| Payload: | 500 Kg | Table Size: | 1200 X 1500 |
|---|---|---|---|
| Frequency: | 2~5Hz(120~300)RPM | Amplitude: | 1 Inch (25.4MM) Fixed |
| Vibration Pattern: | Rotation, 30° Unbalance Vibration(asynchronous) | Power Supply: | AC 380V±10% 50Hz |
| Name: | Low Frequency Vibration Shaker Transport Simulation Vibration Testing Machine | ||
| High Light: | mechanical vibration testing,vibration shaker table |
||

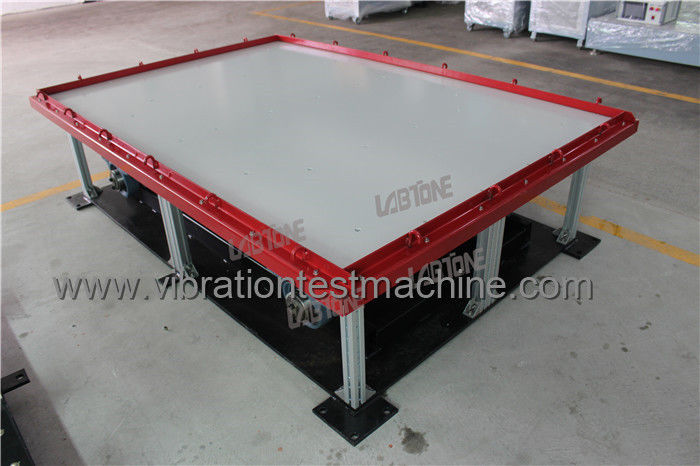

Transport Simulation Vibration Testing Machine
Transportation Simulator is used in laboratory to simulate the truck transportation situation on different road conditions. The purpose is to inspect and estimate the performance of packaging in such conditions.
Transport Simulation Vibration Testing Machine Capabilities
Transport Simulation Vibration Testing Machine Features
Transport Simulation Vibration Testing Machine Specifications
| Model | YST100 | YST200 | YST500 | YST1000 | YST2000 |
Max Payload(kg) |
100 | 200 | 500 | 1000 | 2000 |
| Table Size(mm) |
1000x1200 | 1200x1200 | 1200x1500 | 1500x1500 | 1500x1500 |
| Frequency Range | 2~5Hz(120~300)RPM | ||||
| Displacement | 25.4mm Fixed | ||||
| Test Motions | Rotary (Synchronous) | ||||
| Power Supply | AC220V±10% 50Hz | 3-phase 380V±10% 50Hz | |||
Company profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
Transport Simulation Vibration Testing Machine Services:
Presales
In-Sales
After-Sales
Detailed Picture
