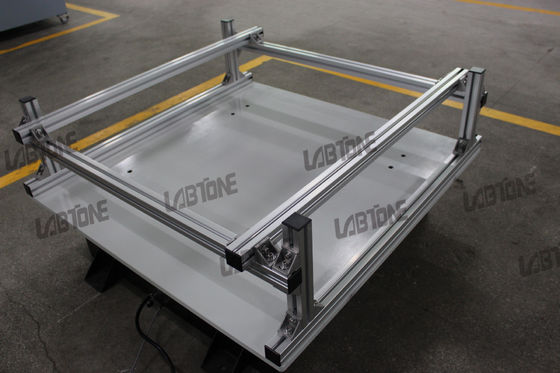

200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm

200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm
200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm 200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm

Large Image :  200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: YST200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: International Plywood Case
Delivery Time: 30-35 Work Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm

Description
Payload: 200kg Table Size: 1200 X 1200
Frequency: 2~5Hz(120~300)RPM Amplitude: 1 Inch (25.4MM) Fixed
Vibration Pattern: Rotation, 30° Unbalance Vibration(asynchronous) Power Supply: AC 220V±10% 50Hz
High Light:

vibration shaker table systems

,

vibration shaker table



200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm



Tranportation Simulation

Mainly used in repeating impact, unloading or jump test that comply to ISTA , ASTM, TAPPI, ISO MIL-STD, FED-STD, UN, DOT and other industrial and government standards. Frequency range is 2-5Hz with fixed displacement of 1 inch (25.4 mm)and maximum acceleration of 1.25 G.



YST series vibration shakers apply eccentric cam principle to achieve rotation (marquee), vertical and non-synchronized (30°unbalance vibration) vibration modes




Features

  • Precise digital display for the vibration frequency.
  • Synchronous low noise wide belt drive mechanism.
  • Guide Rail type fixture for specimen, easy to operate.
  • Heavy channel iron base equipped with damper rubber makes the machine easy to install, having large loading capacity, ensuring stable running.
  • Rotational Vibration method complies with international test standard.
  • Suitable for toys, electronics, furniture, gifts, porcelain, packaging industries for packaging transportation simulation test.



Operating mode


200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm 0


Specifications



Model YST100 YST200 YST500 YST1000 YST2000



Max Payload(kg)

100 200 500 1000 2000

Table Size(mm)



1000x1200 1200x1200 1200x1500 1500x1500 1500x1500

Frequency Range

2~5Hz(120~300)RPM

Displacement

 25.4mm Fixed

Test Motions

 Rotary (Synchronous)
Power Supply AC220V±10% 50Hz 3-phase 380V±10% 50Hz





















































Customer Services:



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.





Management idea:

ound on technical research and development, based on integrity, survived on quality, customers satisfied on services.



We hope:

To provide the best solutions rather than selling products



Our vision:

To be the best well-known manufacturer in the industry of environmental and reliable testing-equipment, and win the respect and trust from customers around the world.



Our mission:

To provide the most advanced technology and the most reliable environmental testing equipment to customers.



Core competitiveness:

Profession, Quality, Service, and Innovation







Detailed Pictures:





200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm 1200kg Payload Rotary Transportation Simulator With Fixed Displacement 25.4mm 2
