Vibration Shock Testing vibration table testing equipment With MILSTD 810g Method 514.6

Vibration Shock Testing vibration table testing equipment With MILSTD 810g Method 514.6
Vibration Shock Testing vibration table testing equipment With MILSTD 810g Method 514.6 Vibration Shock Testing vibration table testing equipment With MILSTD 810g Method 514.6

Large Image :  Vibration Shock Testing vibration table testing equipment With MILSTD 810g Method 514.6

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE,ISO
Model Number: EV210
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: International Wooden case
Delivery Time: 45 working days

Vibration Shock Testing vibration table testing equipment With MILSTD 810g Method 514.6

Description
Name: Vibration Test Machine For Vibration Shock Testing With MILSTD 810g Method 514.6 Sine: 1000kg.f(1kN)
Shock Froce: 2000kg.f(20kN) Displacement: 51mm
Max Acceleration: 100g Payload: 300kg
Max.Velocity: 2.0 M/s
High Light:

shaker testing device

,

industrial shaker table

Vibration Test Machine For Vibration Shock Testing With MILSTD 810g Method 514.6





Vibration Test Machine Discription



EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.



EV series of electromagnetic vibration testing system is specially designed to meet the need for long time operation.Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized, There is no need for additional foundation in most of the cases.

Vibration Test Machine Capabilities

  • Sine: 1,000 kgf (peak)
  • Random: 1,000 kgf (rms)
  • Shock: 2,000 kgf (peak)
  • Frequency range: 2 Hz to 3000 kHz
  • Maximum Velocity: 2.0m/s
  • Maximum Acceleration: 100G (half sine) with a bare armature
  • Maximum payload: 300 kg
  • Maximum displacement: Shock: 51 mm (p-p)



Vibration Test Machine Application


Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.


Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.


Type Selection Formula of Vibrator and Structural Diagram of vibration shaker


① Test conditions provided by your company;
② Test types: sine sweep; random;
③ Frequency response range: 2 to 3000Hz
④ Formula: A(g)=(2πf)2Dcm/980≒A=0.002DmmF2 D=A/0.002F2
F=M(kg) ×A(g)



Vibration Test Machine Specification:



Model EV103 EV203 EV106 EV206 EV210 EV220
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement
(mmp-p)
25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250
Utility Requirements 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35



Vibration Test Machine Main Features

1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.

2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.

3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic     distortion.

4) Quick self-diagnosis with safety interlock, high safety reliability

5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance

6) Horizontal and vertical expansion platforms for different applications

7) Simple controller operation



Vibration Test Machine Services

Pre-Sales Service

* Technical consultation: test method, laboratory planning and suggestion.

* Equipment selection: selection scheme, FAQ.

* View our Factory.



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

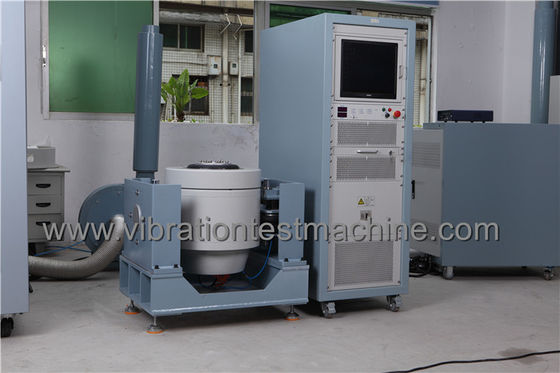

Vibration Test Machine Images:
