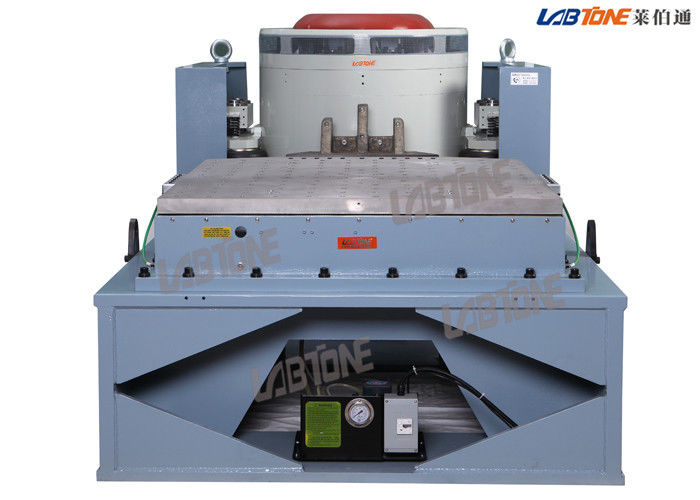

50kN Force Electrodynamic Shaker Vibration Test Machine For Vibration Shock Testing

50kN Force Electrodynamic Shaker  Vibration Test Machine For Vibration Shock Testing
50kN Force Electrodynamic Shaker  Vibration Test Machine For Vibration Shock Testing 50kN Force Electrodynamic Shaker  Vibration Test Machine For Vibration Shock Testing

Large Image :  50kN Force Electrodynamic Shaker Vibration Test Machine For Vibration Shock Testing

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE,ISO
Model Number: EV450
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: International Wooden case
Delivery Time: 45 working days

50kN Force Electrodynamic Shaker Vibration Test Machine For Vibration Shock Testing

Description
Sine Force: 5000kg.f(50kN) Random Force: 5000kg.f(50kN)
Shock Froce: 10000kg.f(100kN) Displacement: 100mm
Max Acceleration: 71g Payload: 1000kg
Max.Velocity: 2.5 M/s
High Light:

shaker testing device

,

industrial shaker table



50kN Force Electrodynamic Shaker Vibration Test Machine For Vibration Shock Testing



Electrodynamic Shaker Capabilities

  • Sine: 5,000 kgf (peak)
  • Random: 5,000 kgf (rms)
  • Shock: 10,000 kgf (peak)
  • Frequency range: 2 Hz to 2500 kHz
  • Maximum Velocity: 2.5m/s
  • Maximum Acceleration: 71G (half sine) with a bare armature
  • Maximum payload: 1000 kg
  • Maximum displacement: Shock: 100 mm (p-p)



Product Application


Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.


Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.


Type Selection Formula of Vibrator and Structural Diagram of vibration shaker


① Test conditions provided by your company;
② Test types: sine sweep; random;
③ Frequency response range: 2 to 3000Hz
④ Formula: A(g)=(2πf)2Dcm/980≒A=0.002DmmF2 D=A/0.002F2
F=M(kg) ×A(g)



Specification:



Model
EV340
EV350
EV420
EV430
EV440
EV450
Vibration Generator
VG4000/76
VG5000/76
VG2000/100
VG3000/100
VG4000/100
VG5000/100
Frequency
(Hz)
2-2500
2-2500
2-3000
2-2500
2-2500
2-2500
Max Exiting Force(kg.f)
4000
5000
2000
3200
4000
5000
Max. Displacement (mmp-p)
76
76
100
100
100
100
Max. Acceleration
(g)
80
100
90
71
66
71
Max. Velocity(cm/s)
200
200
200
250
250
250
Payload(kg)
1000
1000
500
500
800
1000
Armature Mass(kg)
50
50
23
45
60
70
Armature Diameter
(mm)
φ440
φ440
φ320
φ400
φ445
φ445
Cooling Method
Forced Air Cooling
460
720
920
1100
1600
Vibration Generator Weight(kg)
2000
2500
3500
3800
2000
3000
Vibration Generator Dimension L*W*H(MM)
1400*900*1100
1400*980*1100
1600*1120*1340
1600*1120*1340
850*1000*1100
1100*1300*1440
Power Amplifier
Amp35k
Amp50k
Amp60k
Amp70k
Amp30k
Amp45k
Cooling Method
Forced Air Cooling



Main Features



1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.

2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.

3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic     distortion.

4) Quick self-diagnosis with safety interlock, high safety reliability

5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance

6) Horizontal and vertical expansion platforms for different applications

7) Simple controller operation



Pre-Sales Service

* Technical consultation: test method, laboratory planning and suggestion.

* Equipment selection: selection scheme, FAQ.

* View our Factory.



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
