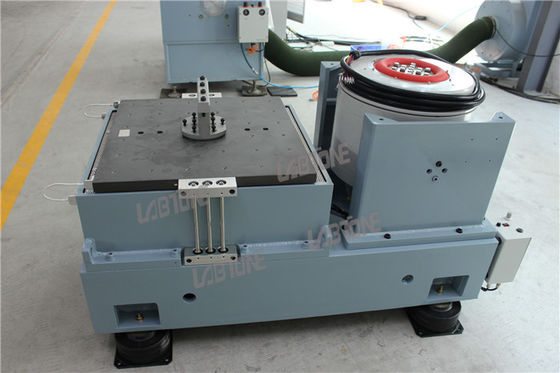

Electrodynamic Shaker For Vibration Test of Charger Lithium Battery With IEC Standard

Electrodynamic Shaker For Vibration Test of  Charger Lithium Battery With IEC Standard
Electrodynamic Shaker For Vibration Test of  Charger Lithium Battery With IEC Standard Electrodynamic Shaker For Vibration Test of  Charger Lithium Battery With IEC Standard

Large Image :  Electrodynamic Shaker For Vibration Test of Charger Lithium Battery With IEC Standard

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV206
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Electrodynamic Shaker For Vibration Test of Charger Lithium Battery With IEC Standard

Description
Rated Force: 600 Kg Max. Velocity: 200 Cm/s
Maximum Displacement: 51 Mm Cooling Method: Air Cooling
Payload: 100 Kg Power Amplifier: 3-phase AC 380V 50Hz
High Light:

electrodynamic vibration shaker system

,

dynamic testing equipment

Electrodynamic Shaker For Vibration Test of Charger Lithium Battery With IEC Standard







The purpose of vibration testing is to make a series of controllable vibration simulation in lab, no matter generated by natural or man-made vibration environment; such as waves, tidal flaps, wind, earthquake or rain and so on. It is to test if the product is capable of sustaining the vibration environment exerted from transporting or usage along its effective life cycle; and certify the standard of design & functional requirement of product. The value of vibration testing is to confirm the reliability of products and effectively screen out the bad products in factory; avoiding damages occurred at arrival; and to assess the failure analysis on the non-performing products; expecting to reach a high standard, high-reliability products. The vibration test stresses on the continuity and fatigue; and contributes to the understanding of product’s status under vibration circumstance in a normal environment; and avoids the product’s unpredictable damage caused under certain vibrating frequency for a long time.





Electrodynamic Shaker Features:

  •  Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
  •  Load center airbag  with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
  •  High efficiency D class power switching, 3-sigma peak current, low power consumption and  minimum harmonic distortion
  •  Quick self-diagnosis with safety interlock, high safety reliability
  •  Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and  reduction in vibration transmittance
  •  hHorizontal and vertical expansion platforms for different applications
  •  Simple controller operation

Vibration testing System Block Diagram



Electrodynamic Vibration Shaker Vibration Testing Machine System Table









Electrodynamic Shaker Specifications:


Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35





Company profile




Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.



Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
