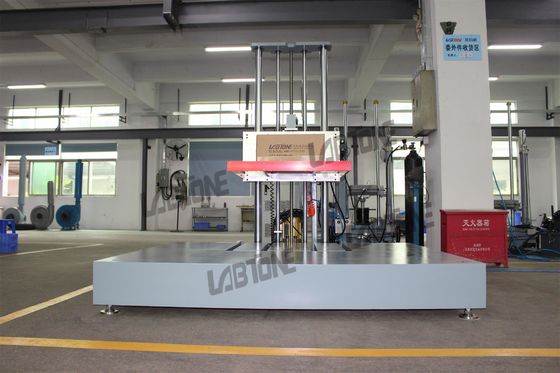

Free Drop Packaging Drop Test Machine With Drop Height 0-1200 mm For Big Package

Free Drop Packaging Drop Test Machine With Drop Height 0-1200 mm For Big Package
Free Drop Packaging Drop Test Machine With Drop Height 0-1200 mm For Big Package Free Drop Packaging Drop Test Machine With Drop Height 0-1200 mm For Big Package

Large Image :  Free Drop Packaging Drop Test Machine With Drop Height 0-1200 mm For Big Package

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: DT030
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 50 Sets / Month

Free Drop Packaging Drop Test Machine With Drop Height 0-1200 mm For Big Package

Description
Drop Height: 0-1200mm Specimen Weight: 300kg
Specimen Dimension: 1200*1200*1200mm Drop Type: Free Drop
Machine Dimension: 2100*1700*2800mm Machine Weight: 2300kg
High Light:

drop test equipment

,

drop weight impact testing machine





Free Drop Packaging Drop Test Machine With Drop Height 0-1200 mm For Big Package





Operating Principle



The machine will move the drop platen which carrying the package under test to the set height, then freely fall the package at flat, edge and corner position. During test, the platen will drop at large than 1G acceleration to ensure the package performs free fall condition.

Free Drop Packaging Drop Test Machine With Drop Height 0-1200 mm For Big Package 0


Product Description

For the massive packing goods and the mass is large, the vertical drop height is relatively low in the transportation and handling. So the Standard Free DropTest Equipment for Heavy Packaged Cargo is relatively low. This drop tester is mainly used for larger package drop test. Zero height drop tester use a quickly moves down E fork mounting as bracket. The specimen place balance as the test requirment(plane, edge,angle). When doing the test, the bracket do high-speed downward movement before the specimen, acceleration >3g, it need guarantee the bracket separate with the specimen and realize free fall. The standard drop height range is 2.54cm-120cm.



Specification



Model DT015 DT020 DT030
Drop height(mm) 0----1200 0----1200 0---1200
Specimen weight(KG) 150 200 300
Specimen dimension(mm) 1000*1000*1000 1200*1200*1200 1200*1200*1200
Drop type Free drop
Machine dimension(mm) 1900*1700*2800 2100*1700*2800 2100*1700*2800
Machine Weight(kg) 2500 3200 4500
Power supply 3 phase AC380V 50HZ
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27





Equipment Configuration



No. Equipment name Model Qty. Description
1 Drop tester DT030 1 set
2 Pneumatic–hydraulic pressure cylinder   1 pcs
2 Controller   1 set
3 Edge and Corner Auxiliary Fixture   1 set
4 Connection cable   1 set





Labtone Service



Presales:
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme

In-Sales:
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification

After-sale:
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer lable





Detailed Picturers:



Free Drop Packaging Drop Test Machine With Drop Height 0-1200 mm For Big Package 1
