Drop Weight Impact Testing Machine Meets Battery MIL STD 810g Drop Test Standards

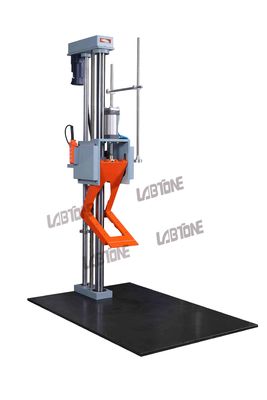

Large Image : Drop Weight Impact Testing Machine Meets Battery MIL STD 810g Drop Test Standards

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE ISO
Model Number:	DT200

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	international wooden case
Delivery Time:	15-20 days
Payment Terms:	T/T
Supply Ability:	50 Sets / Month

Contact Now

Drop Weight Impact Testing Machine Meets Battery MIL STD 810g Drop Test Standards

Description

Drop Height:	300-2000mm	Specimen Weight:	85kg
Specimen Dimension:	800800800mm	Drop Mode:	Freedom
Machine Dimension:	170012002750mm	Machine Weight:	550kg
Warranty:	12 Months	Air Pressure:	0.5-0.7Mpa
Highlight:	package testing services , drop test equipment

Packaging Drop Test Machine Meets MIL STD 810g Drop Test Standards

All new developing products must undergo several strict testing processes while in designing, manufacturing and packing/ shipping even. Our drop tester will provide data digitizing and analyzing of your drop and striking while the products in transportation. The testing data will help you improve the packing and buffer materials.
Packaged drop test is applied to test the anti-vibration & covering capability of packaging material and the sufficiency of product’s impact-resisting capability regarding packaged products. And use the test result to determine how to improve the packaging design. Free drop test is used to assess the characteristics of product’s free fall from improper actions; and evaluate the required strength and toughness of product under safety conditions.Repeated free fall test is to simulate object’s condition after normal fall to hard surface.

Product description

High-velocity pneumatic cylinder, precision cam design and unique brake system allow extremely accurate, flat drop testing that exceeds industry standards, such as ASTM D5276.
Footswitch operation for triggering and resetting the platen.
Precision cam and bearing design for producing flat drops.
Counter-balance assembly to assist with the vertical positioning of the drop assembly.

Functions and Features

Edge & corner fixture.
Extended platen.
Slotted and over-sized bases.
Test Partner data acquisition.

Drop Weight Impact Testing Machine Meets Battery MIL STD 810g Drop Test Standards 0

High Accuracy Drop Tester for Packaged Freight specifications

Model	DT150	DT200
Drop height range (mm)	300---1500	300----2000
Specimen max.weight (kg)	85	85
Specimen max. size (mm)	800800800	800800800
Drop mode	Freedom
Machine Dimension (mm)	150010002150	170012002750
Machine weight (kg)	480	550
Power supply	AC220V 50Hz compressed air 0.5~0.7Mpa
Standards	ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27

Drop Weight Impact Testing Machine Meets Battery MIL STD 810g Drop Test Standards 1

Drop Weight Impact Testing Machine Meets Battery MIL STD 810g Drop Test Standards 2

Packaging

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc

FAQ

1. Q: What is your warranty ?

12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

2. Q: How-to vedio provided ?

Yes, if required, our engineers will record a specialize how-to video for you.

3. Q: Is the machine made in your own plant ?

Yes, welcome to visit our plant(factory), also we support OEM and ODM.

4. Q: What about the quality ?

Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
