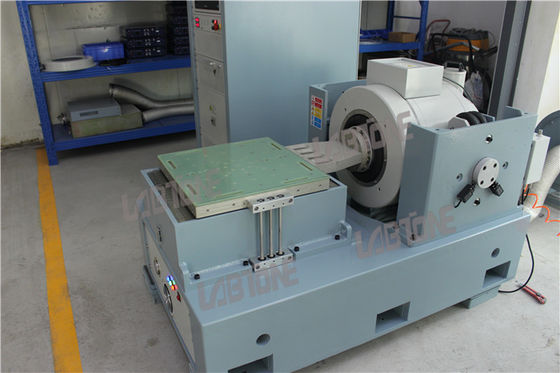

Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard

Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard
Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard

Large Image :  Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard

Product Details:
Place of Origin: China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV210
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard

Description
Max. Sine Force: 1000kg.f (10kN) Max. Displacement: 50mm P-p
Max. Acceleration: 100G (980 M/s2) Output Voltage: 100 V
Output Current: 100 A Amplifier Dimension: 800×550×1520 Mm
High Light:

packaging testing equipments

,

vibration lab equipment



Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard





Introduction:



EV series of electromagnetic vibration testing system simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.




Features:

  • Dual magnetic structure;
  • Frameless armatures;
  • Pneumatic load support;
  • Rugged trunnion design with air isolation;
  • Active armature suspension system;
  • Small waveform distortion, high carrying capacity, good guidance quality;
  • Protection functions for safety interlock;
  • Good compatibity with slip table head expander, climatic test chamber, air isolation mounts, etc.



Calculate Formular for Exciting Force:



Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard 0





Specifications:



Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35





Common Standards:

  • IEC 60068-2-64 Environmental Testing Part 2: Test methods –Test Fh: Vibration, broadband randomand guidance
  • EIA-RS-186 Standard Test Methods for Passive Electronic. Component Parts. IEC Publication 68: Basic Environmental Test
  • JIS C 0040:1999 Environmental testing Part 2: Tests -- Test Fc: Vibration (sinusoidal)
  • MIL-STD 167 Department of Defense Test Method Standard – Mechanical Vibrations of Shipboard Equipment (Type I – Environmental and Type II – Internally-Excited)
  • MIL-STD-202 Electronic and Electrical Component Parts
  • MIL-STD-750 Test Methods for Semiconductor Devices
  • MIL-STD-810 Department of Defense Test Method Standard for Environmental Engineering Considerations and Laboratory Tests
  • NAVMAT P-9492 Navy Manufacturing Screening Program that provides guidance concerning the use of temperature cycling and random vibration as manufacturing screens for defects in both parts and workmanship.
  • RTCA DO-160 Section 8 Vibration





Detailed Picturers:



Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard 1



Qualified Shaking System Vibration Test Machine With IEC 60068-2-64 Standard 2
