Electro Power Random Vibration Table Test System For Product and Package Testing

Electro Power Random Vibration Table Test System For Product and Package Testing
Electro Power Random Vibration Table Test System For Product and Package Testing Electro Power Random Vibration Table Test System For Product and Package Testing Electro Power Random Vibration Table Test System For Product and Package Testing

Large Image :  Electro Power Random Vibration Table Test System For Product and Package Testing

Product Details:
Place of Origin: Guangdong, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV206
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now

Electro Power Random Vibration Table Test System For Product and Package Testing

Description
Frequency Range: 2-3000 Hz Max. Displacement: 50 Mm
Armature Mass: 6 Kg Armature Diameter: ￠200 Mm
Power Supply: AC 3-phase 380V / 50Hz Max. Velocity: 2m/s
High Light:

packaging testing equipments

,

vibration lab equipment



Electro Power Random Vibration Table Test System For Product and Package Testing





Key Applications:

  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screening




Features:

  • Internal load support is standard
  • Active armature suspension system
  • Standard body isolation and guidance system designed to eliminate the use of a seismic base
  • Useful vibration control frequency range from 5 to 3000 Hz
  • Some systems available with 76 mm (3 in) displacement
  • Perfect performance on amplitude variation.
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.



Working Principle:



Electro Power Random Vibration Table Test System For Product and Package Testing 0





Specifications: EV103-EV220



Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35





Customer Services:



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.



Common Testing Standards:

  • ASTM D999-01 Standard Test Methods for Vibration Testing of Shipping Containers
  • ASTM D3580 – 95 (2010) Standard Test Methods for Vibration (Vertical Linear Motion) Test of Products
  • ASTM D4728 – 06 Standard Test Method for Random Vibration Testing of Shipping Containers
  • ISO 2247:2000 Packaging – Complete, filled transport packages and unit loads – Vibration tests at fixed low frequency
  • ISO 8318:2000 Packaging – Complete, filled transport packages and unit loads -Sinusoidal vibration tests using a variable frequency
  • ISO 9022-10:1998 Optics and optical instruments - Environmental test methods – Part 10: Combined sinusoidal vibration and dry heat or cold
  • ISO 9022-15:1998 Optics and optical instruments – Environmental test methods – Part 15: Combined digitally controlled broad-band random vibration and dry heat or cold
  • ISO 9022-19:1994 Optics and optical instruments - Environmental test methods – Part 19: Temperature cycles combined with sinusoidal or random vibration
  • IEC 60068-2-64 Environmental Testing Part 2: Test methods –Test Fh: Vibration, broadband randomand guidance

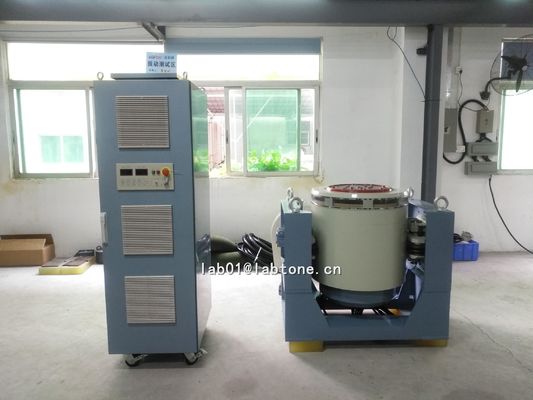

Detailed Pictures:



Electro Power Random Vibration Table Test System For Product and Package Testing 1





Electro Power Random Vibration Table Test System For Product and Package Testing 2













Tag:

vibration test table,

vibration lab equipment,

packaging testing equipments
