Product Details:
|
| Drop Height: | 300-2000mm | Specimen Weight: | 85kg |
|---|---|---|---|
| Specimen Dimension: | 800*800*800mm | Drop Mode: | Freedom |
| Machine Dimension: | 1700*1200*2750mm | Machine Weight: | 550kg |
| Warranty: | 12 Months | Air Pressure: | 0.5-0.7Mpa |
| High Light: | package testing services,drop test equipment |
||

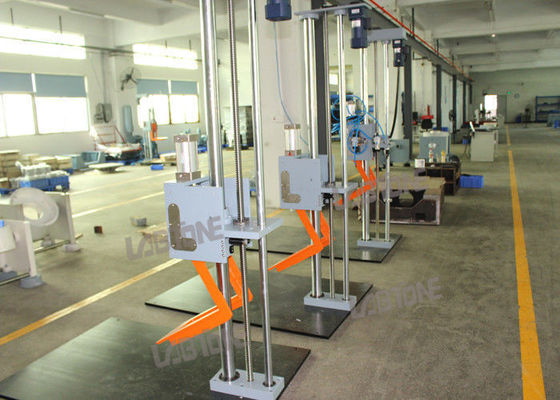

ISTA 1A 2A Package Drop Test Machine, Drop Height 2M, Payload 85kg
Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
Features
1 Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.
2 With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.
3 Damping screw lifting mechanism, preventing drop institution unexpectedly glide.
4 Pneumatic automatic chain, preventing swing arm unusual break away.
5 Extensible support bracket and baseboard.
Specifications
| Model | DT150 | DT200 |
| Drop height range (mm) | 300---1500 | 300----2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom | |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa | |
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 | |
