Product Details:
|
| Rated Force: | 50 KN (5000kg.f) | Armature Diameter: | ￠450 |
|---|---|---|---|
| Maximum Displacement: | 50 Mm | Cooling Blower: | BL-5000 |
| Power Amplifier Model: | Amp60k | Effective Load: | 1000 Kg |
| High Light: | packaging testing equipments,vibration lab equipment |
||

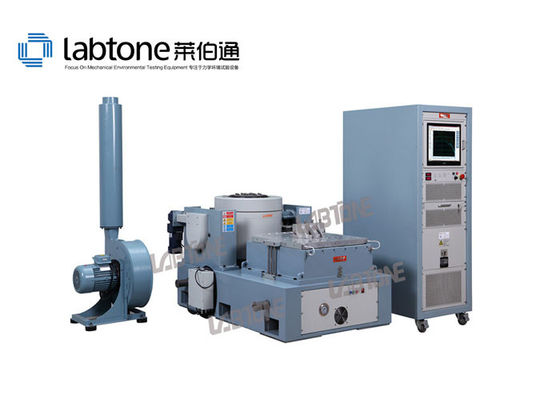

Vibration Testing Machine with Services of On-site Installation and Training
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive, Electronics, Aerospace, Vessel, Telecommunication, Pptoelectronics, Instrument etc.
Features:
Working Principle:
Specifications: EV232-EV330
| Model | EV232 | EV240 | EV250 | EV260 | EV320 | EV330 |
| Vibration Generator | VG300/25 | VG4000/50 | VG5000/50 | VG6000/50 | VG2000/76 | VG3000/76 |
| Frequency(Hz) | 2-2500 | 2-2500 | 2-2500 | 2-2500 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 3200 | 4000 | 5000 | 6000 | 2000 | 3000 |
| Max. Displacement (mmp-p) | 50 | 50 | 50 | 50 | 76 | 76 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 80 | 80 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 | 200 | 200 |
| Payload(kg) | 500 | 800 | 1000 | 1000 | 1000 | 1000 |
| Armature Mass(kg) | 30 | 40 | 50 | 50 | 25 | 35 |
| Armature Diameter(mm) | φ400 | φ400 | φ450 | φ450 | φ320 | φ320 |
| Cooling Method | Forced Air Cooling | |||||
| Vibration Generator Weight(kg) | 2000 | 2500 | 3500 | 3800 | 2000 | 3000 |
| Vibration Generator Dimension L*W*H(MM) | 1400*900*1100 | 1400*980*1100 | 1600*1120*1340 | 1600*1120*1340 | 850*1000*1100 | 1100*1300*1440 |
| Power Amplifier | Amp35k | Amp50k | Amp60k | Amp70k | Amp30k | Amp45k |
| Cooling Method | Forced Air Cooling | |||||
| Power Amplifier Weight(kg) | 550 | 600 | 800 | 1000 | 550 | 600 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||||
| Aggregate Capacity(KW) | 45 | 64 | 85 | 95 | 40 | 60 |
Packaging:
Customer Services
Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: Feedback within 4-8 hours after get the call or email.
Service: Solution provide, customization is accepted.
Certificate: China official third-party calibration report / CE Certification.
