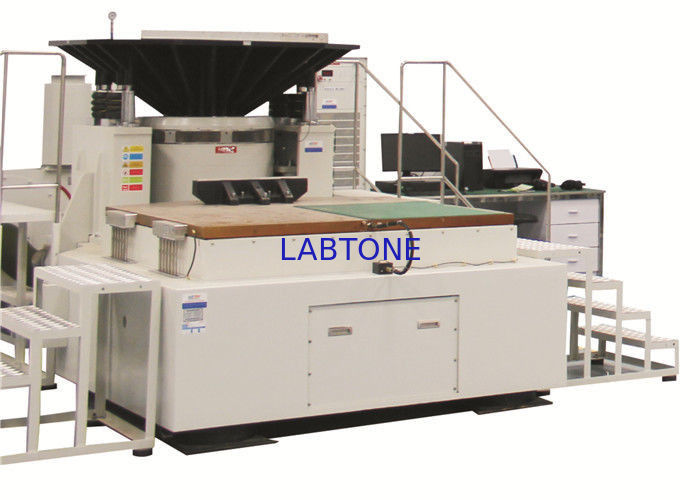

Mechanical Big Force Vibration Table Testing Equipment AECTP400

Mechanical Big Force Vibration Table Testing Equipment AECTP400
Mechanical Big Force Vibration Table Testing Equipment AECTP400 Mechanical Big Force Vibration Table Testing Equipment AECTP400 Mechanical Big Force Vibration Table Testing Equipment AECTP400

Large Image :  Mechanical Big Force Vibration Table Testing Equipment AECTP400

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV440
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now

Mechanical Big Force Vibration Table Testing Equipment AECTP400

Description
Product Name: Vibration Table Max Acceleration: 66 G
Max Velocity: 250 Cm/s Frequency Range: 2-2500 Hz
Max Displacement: 100 Mm Max Payload: 800 Kg
Sine Force Peak: 40 KN (4000 Kg.f)
High Light:

vibration test table

,

vibration lab equipment

Big Force Vibration Testing Systems Mechanical Environmental Tests AECTP400





Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.







Key Applications:

  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screenin





Specifications: EV340-EV450



Model EV340 EV350 EV420 EV430 EV440
Vibration Generator VG4000/76 VG5000/76 VG2000/100 VG3000/100 VG4000/100
Frequency(Hz) 2-2500 2-2500 2-3000 2-2500 2-2500
Max Exiting Force(kg.f) 4000 5000 2000 3200 4000
Max. Displacement (mmp-p) 76 76 100 100 100
Max. Acceleration(g) 80 100 90 71 66
Max. Velocity(cm/s) 200 200 200 250 250
Payload(kg) 1000 1000 500 500 800
Armature Mass(kg) 50 50 23 45 60
Armature Diameter(mm) φ440 φ440 φ320 φ400 φ445
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 3500 3800 2000 3200 4200
Vibration Generator Dimension L*W*H(MM) 1100*1300*1520 1100*1300*1520 850*1000*1100 1100*1300*1440 1100*1300*1520
Power Amplifier Amp55k Amp70k Amp25k Amp40k Amp60k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 800 900 550 600 800
Power Amplifier Dimension L*W*H(MM) 800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 80 90 45 64 85





Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification



Welcome to contact us with your vibration test inquiry.





Features:



  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
  • Quick self-diagnosis with safety interlock, high safety reliability;
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
  • Provide horizontal and vertical expansion platform for different application;
  • Simple controller operation.
