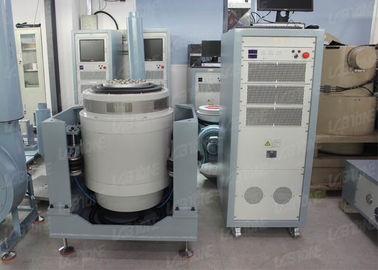

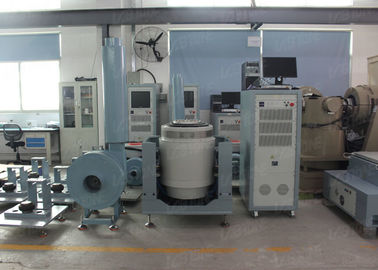

Vibration Table Testing Equipment with Max Acceleration of 100g for Optoelectronics and Telecommunication

Vibration Table Testing Equipment with Max Acceleration of 100g for Optoelectronics and Telecommunication
Vibration Table Testing Equipment with Max Acceleration of 100g for Optoelectronics and Telecommunication Vibration Table Testing Equipment with Max Acceleration of 100g for Optoelectronics and Telecommunication Vibration Table Testing Equipment with Max Acceleration of 100g for Optoelectronics and Telecommunication

Large Image :  Vibration Table Testing Equipment with Max Acceleration of 100g for Optoelectronics and Telecommunication

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE,ISO
Model Number: EV220
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: International Wooden case
Delivery Time: 45 working days
Contact Now

Vibration Table Testing Equipment with Max Acceleration of 100g for Optoelectronics and Telecommunication

Description
Name: 20KN Force Vibration Test Equipment With Table 50x50cm Meets ISTA Standard Sine Force: 2000kg.f(20kN)
Max.payload: 400kg Displacement: 51mm
Max Velocity: 2.0m/s Cooling Method: Air-cooling
Head Expander: 100x100cm Horizontal Slip Table: 100x100cm
Highlight:

vibration testing table for optoelectronics

,

telecommunication vibration testing equipment

,

100g acceleration vibration table





20KN Force Vibration Test Equipment With Table 50x50cm Meets ISTA Standard





Electrodynamic Shaker: swept sine, random, sine on random, resonance search, fixed frequency



A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection

Vibration testing system Applications:
automotive,electronics,aerospace,vessel,telecommunication,optoelectronics ,instrument etc



Electrodynamic Shaker Specification:



Model
EV103
EV203
EV106
EV206
EV210
EV220
Frequency(Hz)
2-4000
2-2500
2-3000
2-3000
2-3000
2-2500
Max Exiting Force(kg.f)
300
300
600
600
1000
2000
Max. Displacement
(mmp-p)
25
38
25
50
50
50
Max. Acceleration(g)
100
100
100
100
100
100
Max. Velocity(cm/s)
200
120
180
200
200
200
Payload(kg)
110
120
200
200
300
400
Armature Mass(kg)
3
3
6
6
10
20
Armature Diameter(mm)
φ150
φ150
φ200
φ200
φ240
φ320
Cooling Method
Forced Air Cooling
Vibration Generator Weight(kg)
460
460
720
920
1100
1600
Vibration Generator Dimension L*W*H(MM)
750*560*670
750*555*670
800*600*710
800*600*710
845*685*840
1200*870*1100
Power Amplifier
Amp3k
Amp3k
Amp6k
Amp6k
Amp12k
Amp22k
Cooling Method
Forced Air Cooling
Power Amplifier Weight(kg)
250
250
320
320
350
500
Power Amplifier Dimension L*W*H(MM)
800*550*1250
Utility Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW)
8
9
18
20
25
35



Head Expanders



Size(mm): 300 x 300-1500x1500

Material: Aluminium /Magnesium

The expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping and minimizes the amplification factor of high-frequency resonance.

Fixture / Cube

Material: Aluminium /Magnesium
According to the customer's actual demand, we can offer different shapes of the fixture, such as three-dimensional square, L, and T shape.

Pre-Sales Service

* Technical consultation: test method, laboratory planning, and suggestion.

* Equipment selection: selection scheme, FAQ.

* View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

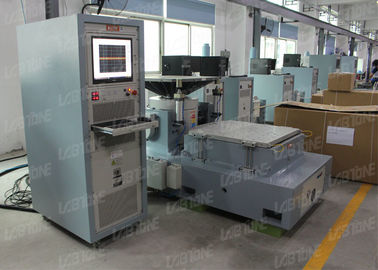

Workshop
