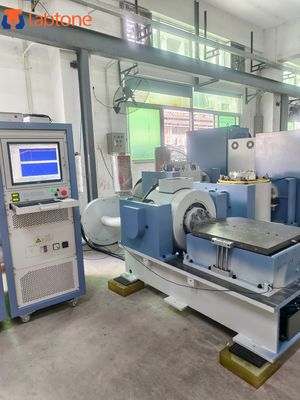

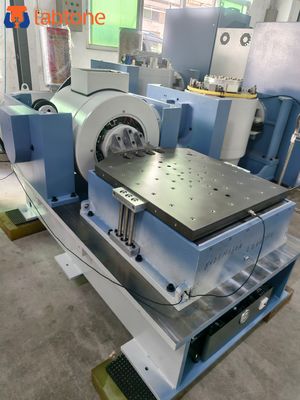

Slip Table Head Expander Compatible Vibration Table Testing Equipment for Measuring Instruments

Slip Table Head Expander Compatible Vibration Table Testing Equipment for Measuring Instruments
Slip Table Head Expander Compatible Vibration Table Testing Equipment for Measuring Instruments Slip Table Head Expander Compatible Vibration Table Testing Equipment for Measuring Instruments Slip Table Head Expander Compatible Vibration Table Testing Equipment for Measuring Instruments

Large Image :  Slip Table Head Expander Compatible Vibration Table Testing Equipment for Measuring Instruments

Product Details:
Place of Origin: China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV210
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now

Slip Table Head Expander Compatible Vibration Table Testing Equipment for Measuring Instruments

Description
Frequency Range: 1 - 3000 Hz Rated Force: 10 KN
Output Power: 12 KVA Output Voltage: 100 V
Output Current: 100 A Amplifier Dimension: 800×550×1520 Mm
Highlight:

slip table head expander vibration testing

,

vibration table testing equipment expander

,

measuring instruments vibration table expander





Laboratory Vibration Testing Equipment With Slip Tables For IEC60601-1-11-201





Applicable Standards



MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries:



Automotive, Electronics, Aviation, Large Ships, Military Industry, Rail Transit, Potoelectronics, Measuring Instrument etc.




Features:

  • Dual magnetic structure;
  • Frameless armatures;
  • Pneumatic load support;
  • Rugged trunnion design with air isolation;
  • Active armature suspension system;
  • Small waveform distortion, high carrying capacity, good guidance quality;
  • Protection functions for safety interlock;
  • Good compatibity with slip table head expander, climatic test chamber, air isolation mounts, etc.



Working Principle:



Slip Table Head Expander Compatible Vibration Table Testing Equipment for Measuring Instruments 0





Specifications: EV203-EV220



Model EV203 EV210 EV220
Vibration Generator VG300/40 VG1000/50 VG2000/50
Frequency(Hz) 1-3000 1-3000 1-3000
Max Exiting Force(kg.f) 300 1000 2000
Max. Displacement (mmp-p) 40 51 51
Max. Acceleration(g) 100 100 100
Max. Velocity(cm/s) 120 200 200
Payload(kg) 120 300 400
Armature Mass(kg) 3 10 20
Armature Diameter(mm) φ150 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 25 35







Workshop:

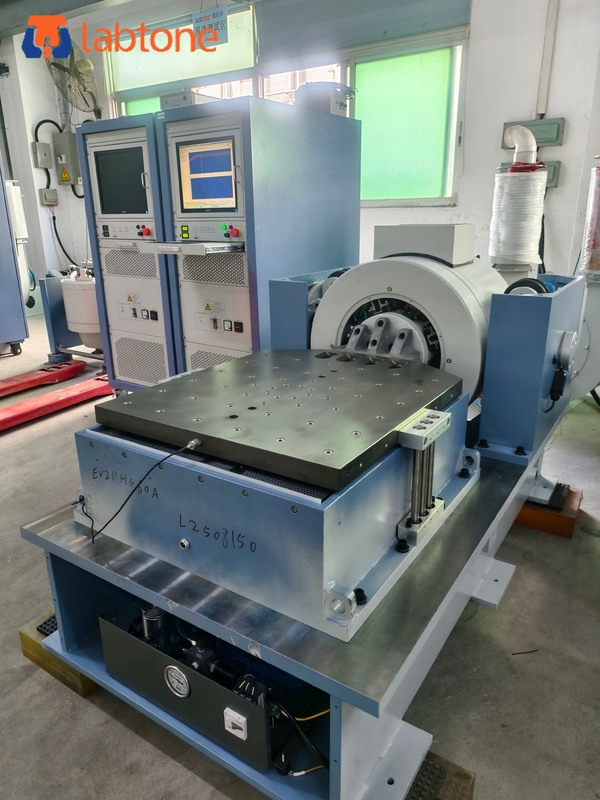

Slip Table Head Expander Compatible Vibration Table Testing Equipment for Measuring Instruments 1























Tag:

vibration test table,

vibration lab equipment,

packaging testing equipments
