22KN Force Vibration Table Testing Equipment With 1000x1000mm Test Table

Large Image : 22KN Force Vibration Table Testing Equipment With 1000x1000mm Test Table

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE,ISO
Model Number:	EV220

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	International Wooden case
Delivery Time:	45 working days

Contact Now

22KN Force Vibration Table Testing Equipment With 1000x1000mm Test Table

Description

Name:	20KN Force Vibration Table Testing Equipment With 1000x1000mm Test Table	Sine Force:	2000kg.f(20kN)
Max.payload:	400kg	Displacement:	51mm
Max Velocity:	2.0m/s	Cooling Method:	Air-cooling
Head Expander:	100x100cm	Horizontal Slip Table:	100x100cm
Highlight:	22KN vibration testing equipment , 1000x1000mm vibration test table , force vibration table with warranty

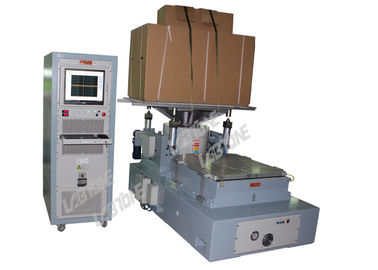

22KN Force Vibration Table Testing Equipment With 1000x1000mm Test Table

Electrodynamic Shaker: swept sine, random, sine on random, resonance search, fixed frequency

A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection

Vibration testing system Applications:
automotive,electronics,aerospace,vessel,telecommunication,optoelectronics ,instrument etc

Equipment Configuration

Item	Configuration	Qty.
1)	Vibration shaker
	A20S34 shaker (included Pneumatic Centering Controller)	1 set
	B752S blower (included silencer and Duct )	1 set
	Head Expander VT100CM	1 set
	Horizontal Slip table HG100M	1 set
2)	Power Amplifier
	LA20K Power amplifier(including Field power supply)	1 set
3)	Vibration Controller-Vcs-02 (Including Hardware and Control Functions Program software CDS
	Accelerometer (Including Length 7m low noise BNC-M5 cable)	2 set
	Computer(Including keyboard, mouse and monitor)	0 set
4)	Documentation Operation Manual, Packing List	1 set
5)	Accessories
	Maintenance Tools	1 set
	Standard Spare Parts	1 set

Electrodynamic Shaker Specification

Shaker Specifications
Peak Sine (Pk)	2400Kg.f peak (24KN)
Random (RMS)	2200Kg.f rms (22KN) @ISO5344
Shock (Pk)	4400Kg.f peak (44KN) @6ms
Usable Frequency	DC～3000Hz
Maximum Displacement (p-p)	51mm (2inch)
Max. velocity	2m/s
Max. acceleration	Sine:100g (980 m/s²)；Random: 60g (588 m/s²)
Vertical Load Support	400 kg
Body Suspension Natural Frequency (Thrust Axis)	Less than 2.5 Hz
Armature Diameter	Ф340 mm
Armature Weight	About 24kg
Fundamental Resonance Frequency (Bare table)	2,600 Hz (nom.) +/- 5%
Load Attachment Points (Standard)	21stainless steel M10 Inserts
Stray Flux Density	＜10gauss
Allowable partial force	500.N.M
Shaker dimensions	1190mmL×860mmD×1060mmH
Power Amplifier Specifications LA20K
Rated Output Capacity	22KVA
Signal to Noise Ratio	Greater than 65 dB
Amplifier Efficiency	Greater than 90%
Amplifier Overall Dimensions	650mmL×920mmD×1780mmH

Head Expanders

Size(mm): 300 x 300-1500x1500

Material: Aluminium /Magnesium

The expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping and minimizes the amplification factor of high-frequency resonance.

Fixture / Cube

Material: Aluminium /Magnesium
According to the customer's actual demand, we can offer different shapes of the fixture, such as three-dimensional square, L and T shape.

Pre-Sales Service

* Technical consultation: test method, laboratory planning, and suggestion.

* Equipment selection: selection scheme, FAQ.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Workshop

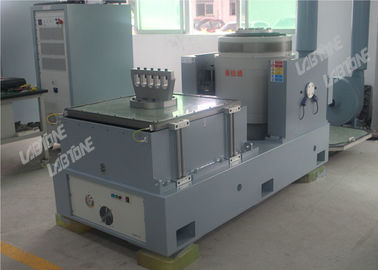

22KN Force Vibration Table Testing Equipment With 1000x1000mm Test Table 0

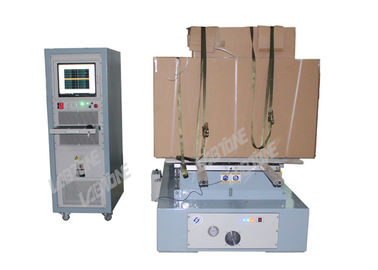

22KN Force Vibration Table Testing Equipment With 1000x1000mm Test Table 1
