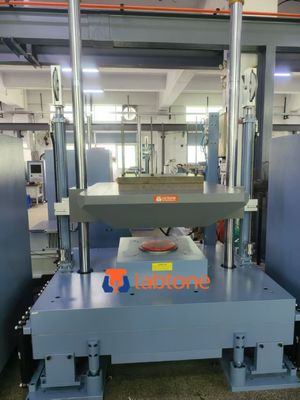

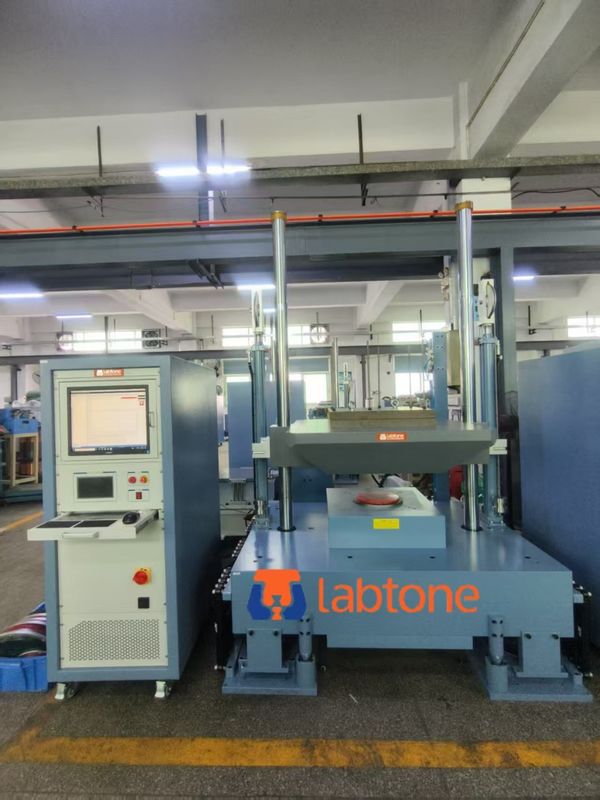

600g Acceleration Shock Test System Suitable For Home Appliances

Large Image : 600g Acceleration Shock Test System Suitable For Home Appliances

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	SKT50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	International wooden case
Delivery Time:	45 working days
Payment Terms:	T/T, L/C
Supply Ability:	15 Sets Per Month

Contact Now

600g Acceleration Shock Test System Suitable For Home Appliances

Description

Model::	SKT100	Table Size::	50*60cm
Specimen Max Weight(kg)::	100kg	Max. Acceleration (G)::	600g
Pulse Duration Range (ms)::	2~30ms	Machine Weight::	2000kg
Power Supply:	3-phase AC380V 50/60Hz 0.5~0.8MPa

The Application Of Shock Test

Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pilse or company's internal standards, we can provide the most advanced shock test system to meet your application requirements.

Suitable shock tests for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.

By selecting different waveform generators, it can perform half sinusoidal wave, sawtooth wave, or trapezoidal wave.

Specifications

Model		SKT50	SKT100	SKT200	SKT300	SKT500	SKT1000	SKT1500
Table size (cm)		40 x 40	50 x 60	70 x 80	100 x 100	120 x 120	150 x 150	200 x 200
Maximum Specimen Weight(Kg)		50	100	200	300	500	1000	1500
Max acceleration(G)	half sine	600	600	600	500	500	300	300
	saw-tooth waveform	100	100	100	100	100	100	100
	square	100	100	100	60	50	50	50
Pulse Duration (ms)	half sine	30~1	30~2	30~2	20~3	20~3	20~3	20~3
	saw-tooth waveform	18~6	18~6	18~6	18~6	18~6	18~6	18~6
	square	12~6	12~6	12~6	12~6	12~6	12~6	12~6
Machine Dimension(cm)		82x90x195	120x105x245	130x120x260	150x130x260	200x160x300	230x180x310	250x250x310
Controller cabinet Dimension(cm)		W55 x D50 x H80
Machine Weight(Kg)		1050	2000	3200	4200	8500	15500	21500
Power supply		3-phase AC380V 50/60Hz 0.5~0.8MPa
Conforming standards		GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

Application Industry

Aviation, Aerospace, Vessel, Military industry, Consumer Electronics, Automobile, Household Appliances, Display Device etc.

Features

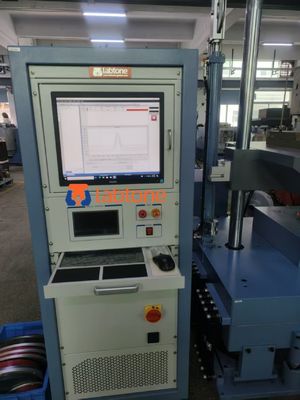

Convenient touch screen operation.
Complete safety protection system.
Utilize pneumatically/hydraulically combined booster and braking system to prevent multiple impact.
With air spring shock absorber and hydraulic shock damping mechanism, there will be no impact on the surrounding and no foundation required.

FAQ

1. Peak acceleration and pulse duration can perform?

5g@30ms, 15g@11ms, 30g@18ms, 50g@6ms, 50g@11ms, 50g@3ms, 100g@6ms, 200g@6ms, 200g@3ms, 500g@1ms etc.

2. How to select the suitable shock test system model?

Depends on the specimen weight, dimension and testing requirement.

3. The purpose of test?

Evaluate the product's structural integrity and functional stability under non-repetitive strong impact conditions during use.
Evaluate the fragility of the outer packaging of the product to protect the structural and functional integrity of the product during transportation.
When the product is installed on a platform where a collision may occur, it is necessary to assess and test the strength (fracture), rigidity (deformation) of the device used to fix the product on the platform, and the impact on the product.
Evaluate the impact of possible throw, drop, and free fall on product performance during loading and unloading, transportation or installation, and debugging.
