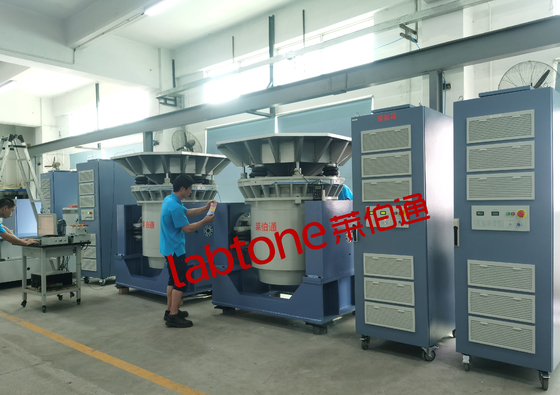

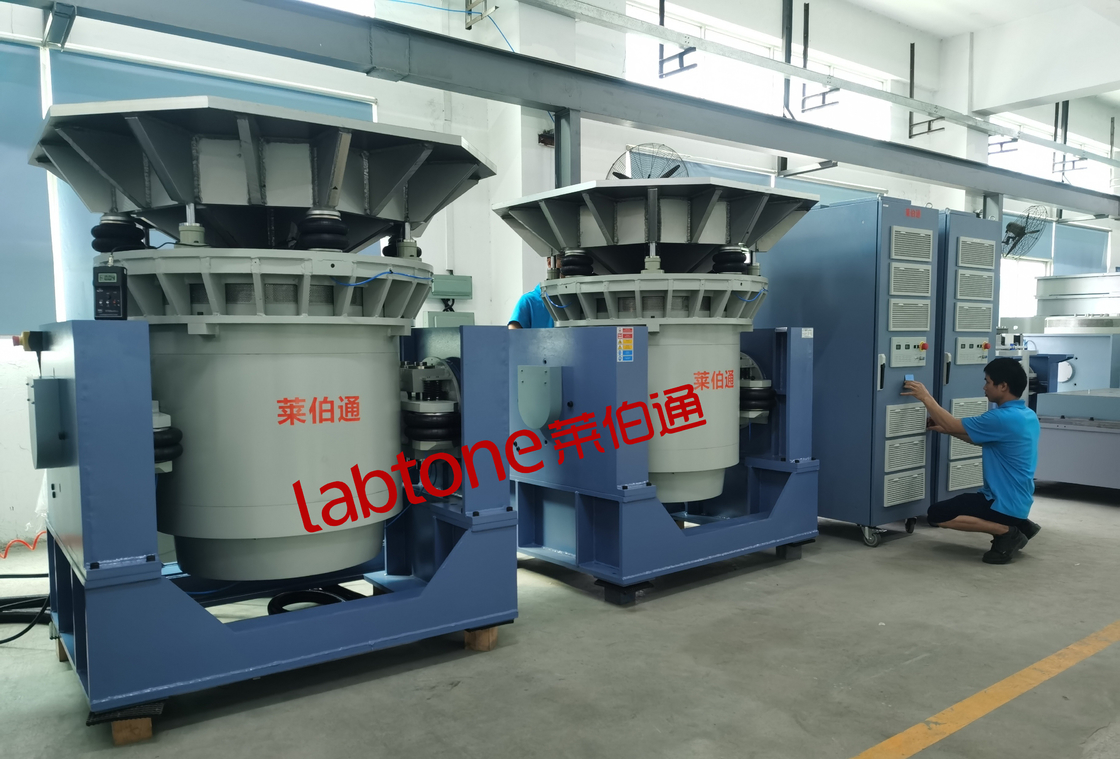

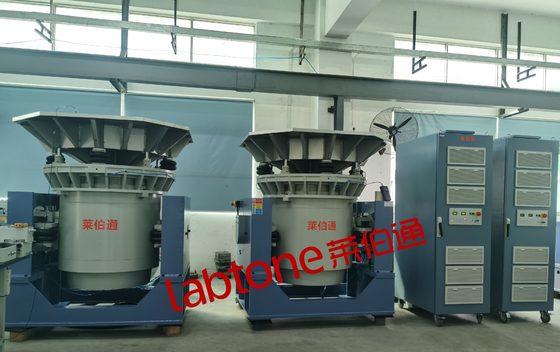

Air Cooling Shock And Vibration Test Equipment For Package ISO 13355

Air Cooling Shock And Vibration Test Equipment For Package ISO 13355
Air Cooling Shock And Vibration Test Equipment For Package ISO 13355

Large Image :  Air Cooling Shock And Vibration Test Equipment For Package ISO 13355

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: SGS CE / ISTA / ISO
Model Number: EV450

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Sine Force Peak: 5000kg.f Random Force: 5000kg.f
Frequency Range: DC-3000 Hz Software: Sine, Random, Shock
Control Computer: Acer Displacement: 100mm P-p
Payload: 500kg Or More Head Expander: Magnesium Alloy
High Light:

MgAL Vibration Test Equipment

,

Vibration Testing Equipment 5000kg.f

,

ISO 13355 Vibration Table Testing Equipment



Air Cooling Shock And Vibration Test Equipment For Package Test ISO-13355





Vibration testing simulates the vibration conditions that a product might experience during its lifetime but under a controlled and repeatable test environment. Vibration tests are conducted in an accredited vibration testing lab to ensure that finished products can perform safely during operation or transit and to avoid unexpected performance issues or early failure during use. Because products spend their lifetime in different environments and these environments exhibit unique vibration profiles, our vibration testing services are tailored to fit each unique environment with specific vibration control profiles.



Vibration Shaker System Specifications: EV450

Shaker Specifications A50F44
Peak Sine (Pk) 5000Kg.f peak (50KN)
Random (RMS) 5000Kg.f r.ms (50KN) @ISO5344
Shock (Pk) 10000Kg.f peak (100KN) @6ms
Usable Frequency 1~2500Hz
Maximum Displacement (p-p) 100mm (4inch) intermittence, 80mm (3inch) continuous
Max. velocity 2m/s
Max. acceleration Sine:83g (813 m/s2);Random: 60g (588 m/s2)
Vertical Load Support 500 kg

Body Suspension Natural

Frequency (Thrust Axis)

Less than 2.5 Hz
Armature Diameter Ф440 mm
Armature Weight 50 kg

Fundamental Resonance

Frequency (Bare table)

2,100 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

16 stainless steel M10 Inserts
Stray Flux Density <10gauss
Allowable partial force 1000.N.M
Shaker dimensions 1670L x 1150D x 1300H mm
Weight of Shaker About 4600Kg
Power Amplifier Specifications LA50K
Rated Output Capacity 50KVA
Signal to Noise Ratio Greater than 65 dB
Amplifier Efficiency Greater than 90%
Amplifier Overall Dimensions 650mmL×920mmD×2100mmH
Weight of Amplifier About 560Kg
Interlock Protection ●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel



The model selection of the vibration test system has the following steps:


1. Determine the test frequency range and limit peak motion (acceleration, velocity and displacement) according to the test conditions.


2. Determine the mass (DUT) of the item under test and the dimensions of the mounting surface required to bolt the DUT to a shaker table with its center of gravity (CG) over the table’s center. This may require use of a head expander and/or other mounting fixture. Determine the mass of such additional hardware including all mounting fasteners.



Look at the shaker specifications for the test system. Verify that the mass of the part under test and any mounting fixture is less than the maximum static load rating of the shaker. Verify that the component under test (or its mounting hardware) can be bolted to the shaker armature or head expander. Add the effective armature mass and expansion head mass to the mass of the object under test as well as the mass of any mounting clamps and fasteners and the mass of any accelerometers mounted on the object under test -- this is the total moving mass the shaker must move during the test. Multiply the total moving mass by the acceleration determined in step 1 to calculate the force required. Verify that the test and DUT required to determine the test frequency range, force, peak acceleration, peak velocity, and peak displacement is less than the corresponding performance rating of the selected shaker system. If this is true, the shaker chosen is acceptable. If not, a more powerful shaker is required.







Working Principle:



Air Cooling Shock And Vibration Test Equipment For Package ISO 13355 0





Application:



Air Cooling Shock And Vibration Test Equipment For Package ISO 13355 1
