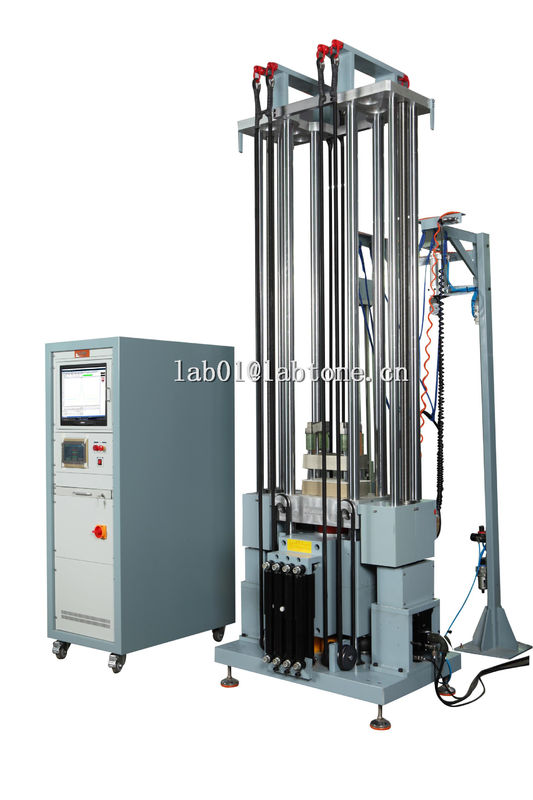

Advanced Technology Mechanical Shock Test Equipment With Acceleration 35000g

Advanced Technology Mechanical Shock Test Equipment With Acceleration 35000g
Advanced Technology Mechanical Shock Test Equipment With Acceleration 35000g Advanced Technology Mechanical Shock Test Equipment With Acceleration 35000g Advanced Technology Mechanical Shock Test Equipment With Acceleration 35000g

Large Image :  Advanced Technology Mechanical Shock Test Equipment With Acceleration 35000g

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: G-SKT30
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month

Advanced Technology Mechanical Shock Test Equipment With Acceleration 35000g

Description
Shock Waveform: Half-sine Table Size: 300 X 300 Mm
Specimen Max Weight: 30 Kg Shock Controller: SKC-2
Acceleration: Up To 35000 G Power Supply: AC380V 50Hz
High Light:

mechanical testing equipment

,

vibration and shock testing



Advanced Technology Mechanical Shock Test Equipment with Acceleration 35000g




Product description:

The shock testing system are mainly applicable to shock resistance tests in such fields as electronic products, aerospace, shipping, military industry, automotive parts and transportation. Shock tests in form of half sine wave, final peak saw tooth wave or trapezoidal wave shock tests can be carried out by selecting different waveform generators.




Main performance:

  • Lifting mechanism is a precision screw. It is driven by a precision motor, and guided by two precision guide columns to ensure that the platform rise and fall smoothly. Precise shock data accuracy is ensured.
  • Impact pre-accumulation acceleration mechanism, make the impact platform greater than +1G acceleration free fall.
  • The shock base adopts the structural design of the airbag + shock absorber damper, which does not affect the floor structure during impact.
  • The machine base is designed without resonance and the impact data is accurate
  • The use of gas-liquid pressure brake friction friction brake mechanism, no secondary impact function
  • Equipped with pressure storage tank to ensure the stability of the brake mechanism and ensure the integrity of the test data
  • Single-channel data measurement acquisition, acceleration data measurement, storage, report printing, data callback, database management and other functions



Technical Parameters:



Main parameters of the shock tester
Operating platform 300 × 300 mm
Max. load 30 KG
Peak acceleration 200-100000m/s2 (20-10000G)
Pulse duration 1~11 ms (Half sine wave)
Equipment dimensions 1300×1220×3380 mm
Equipment weight 1950 kg
Power & Air supply 3phase 380V±10% 50Hz,5KVA & 0.5—0.7MPa
Dual Mass Shock Amplifier
Table size 150 x 150 mm
Max. load 3kg
Peak acceleration 35000G
Pulse duration 0.1—0.5ms





Equipment composition:



No. Equipment name Model Brand Qty.
1 Main equipment G-HSKT30 LABTONE 1 set
2 Shock controller SKC-2 LABTONE 1 set
3 Dual Mass Shock Amplifier D-3 LABTONE 1 set
4 Shock measurement device ST-4 LAB 1 set
5 Accelerometer (Sensor) 3133A5 with connecting cable DYTRAN 3 set
6 Accelerometer (Sensor) 3200B2T with connecting cable DYTRAN 1 set
7 Control computer brand computer   1 set
8 Waveform Generator HB01 LABTONE 1 set
9 Safety device Audible and visual alarm LABTONE 1 set
10 Attached accessories Tools, clamps/instructions, installation disc, etc. LABTONE 1 set





Warranty: within 12 months after customer receive the goods, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification





Packaging:



bubble bag + vacuum package + plywood case
