Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform

China Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform supplier
Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform supplier Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform supplier Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform supplier Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform supplier

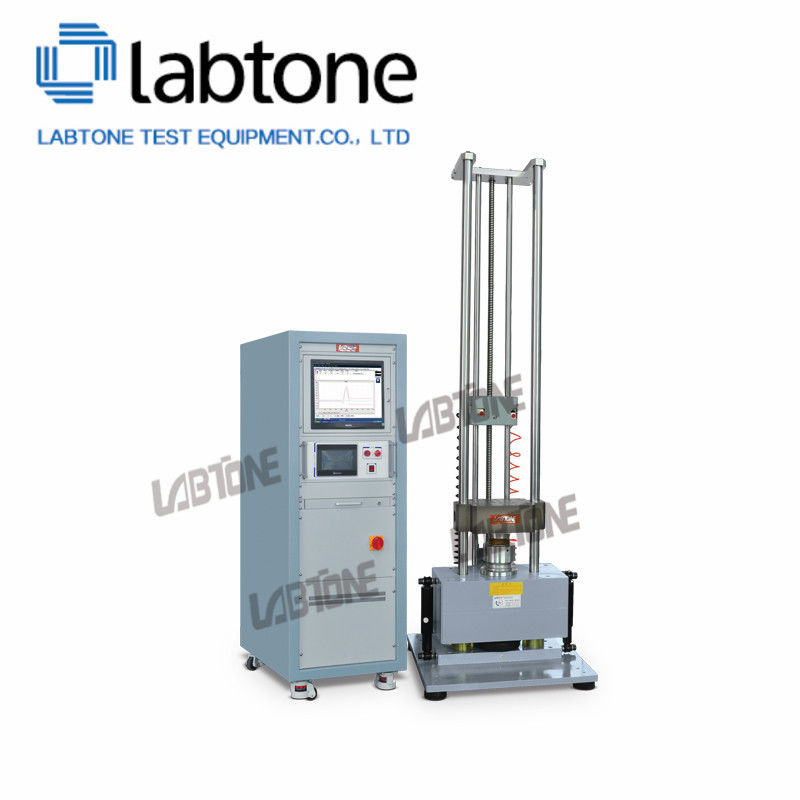

Large Image :  Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT10

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Max. Drop Hegith: 1500 Mm Table Size: 200 X 250 Mm
Max. Acceleration: 2000 G (bare Table) Shock Pulse: Half Sine Wave
Machine Weight: 820 Kg Power Supply: AC 220V 50Hz



Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform





Shock Test System

Products are inevitably affected by impact, bump, free fall, tumbling, etc. during production, transportation, loading and unloading as well as during the use of the products.


Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. To do a boundary assessment on complete product breakage, industrial standard shock pulse or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.





Parameters:



Model HSKT10 HSKT30
Table size (mm) 200x250 300x300
Shock pulse Half sine
Maximum Specimen Weight(Kg) 10 30
Acceleration Range(G) 20 ~ 2000 20 ~ 1500
Pulse Duration (ms) 0.2~18 0.5~30
Machine Dimension(mm) 660x700x2380 720x680x1890
Utility
Requirements
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 820 650



Features

  • Free drop type shock tester using hydraulic lifting and HP fluid braking;
  • Use of pneumatic-hydraulic boosting and strong friction brake to prevent secondary shock braking;
  • Shock measurement device: single-channel data acquisition, simultaneous acceleration data measurement, storage, report printing, data callback, database management of two channels.
  • Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.
  • Availability for equivalent drop test of packing boxes.



Introduction to the shock measuring system and its features



The system conforms to MIL-STD-810, GJB-150-18-86 and IEC68-2-27 standards, and has accurate and prompt shock wave capture capability. The max. sampling rate is 1MHz, therefore, you need not worry about omission of minor shock events.

The system is also an integrated solution, you need not be busy with waveform viewing and recording, as the system can capture shock event and generate report, more importantly, the system can provide you with shock response spectrum analysis (SRS) to facilitate effective assessment of potential damage from shock pulse to the actual system. At last, the auxiliary analysis on force deformation and shock response can enable to understand more details about the shock results.





Warranty:



One year limited warranty with lifetime support; extended warranty available upon request at additional cost.


After-sale service:



 On site installation and trainning are avaiable at extra cost.

 Technical support



Certificate: China official third-party calibration report / CE Certification





Customer Service



Service timeliness



When a fault report is received from customer〈including telephone, fax and email〉:

LABTONE will respond within 4-8 hours (working time), provide solutions and eliminate faults within 12-24 hours. After the equipment's guarantee period ended, supplier still has obligation to provide users with technical supports and after-sales services.



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run
  • Calibration (when Third Party’s verification is required)



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

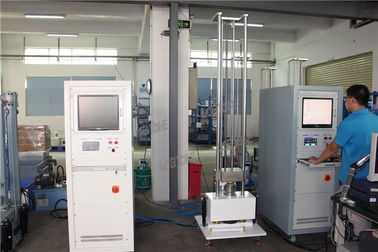

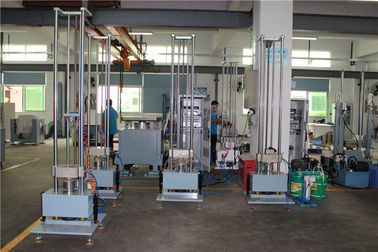

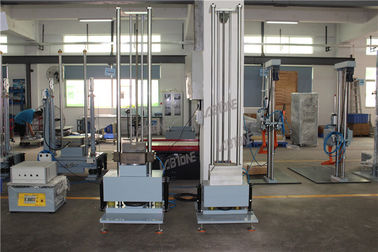

Production:



Mechanical Shock Test Equipment with Half Sine and Trapezoid Waveform
