Shock Mechanical Testing Equipment With Payload 10kg , Table Size 20*25 Cm

China Shock Mechanical Testing Equipment With Payload 10kg , Table Size 20*25 Cm supplier
Shock Mechanical Testing Equipment With Payload 10kg , Table Size 20*25 Cm supplier Shock Mechanical Testing Equipment With Payload 10kg , Table Size 20*25 Cm supplier Shock Mechanical Testing Equipment With Payload 10kg , Table Size 20*25 Cm supplier

Large Image :  Shock Mechanical Testing Equipment With Payload 10kg , Table Size 20*25 Cm

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT10

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Model: HSKT10 Table Size: 200 X 250 Mm
Specimen Max Weight: 10 Kg Shock Pulse: Half Sine Wave
Certificate: CE And ISO Packing: Plywood Case With Vacuum Packaging



Shock Mechanical Testing Equipment With Payload 10kg , Table Size 20*25 Cm





Shock Test System

Shock tests accurately measure the fragility of products and evaluate how they respond to specific shock inputs. Shock test data is key information when determining if your product is capable of withstanding its intended distribution and use environment.


High Speed Shock Test Systems were developed to achieve the most demanding defense, aerospace, and electronics shock testing specifications. These highly specialized shock systems can generate incredible impact velocities.





Parameters:



Model HSKT10 HSKT30
Table size (mm) 200x250 300x300
Shock pulse Half sine
Maximum Specimen Weight(Kg) 10 30
Acceleration Range(G) 20 ~ 2000 20 ~ 1500
Pulse Duration (ms) 0.2~18 0.5~30
Machine Dimension(mm) 660x700x2380 720x680x1890
Utility
Requirements
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 820 650





Features

  • Free drop type shock tester using hydraulic lifting and HP fluid braking;
  • Use of pneumatic-hydraulic boosting and strong friction brake to prevent secondary shock braking;
  • Shock measurement device: single-channel data acquisition, simultaneous acceleration data measurement, storage, report printing, data callback, database management of two channels.
  • Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.
  • Availability for equivalent drop test of packing boxes.



Introduction to Equipment Performance



Operating platform

High-strength imported aluminum alloy operating platform.

Lifting height control

The lifting height is measured by a photoelectric encoder module installed on the base, and the photoelectric encoder module has high accuracy, strong anti-interference capability and high reliability, thus ensuring shock repeatability.

Braking system

Air brake and strong friction brake are applied to prevent secondary shock braking, thus ensuring prompt and reliable braking to prevent secondary bounce.

Buffer system

The buffer system is consisted of a base, a damper and a gasbag. The buffer system can reduce the shock force transferred from the working platform to the ground.

Waveform generator

Plate-typed half sine wave: for achieving different shock pulse widths (1 to 30ms)Trapezoidal wave: special cylinder

Safety device

Emergency stop switch: It switches off the circuit in emergency cases by forcibly disconnecting welded contacts of the actuating mechanism.

Optional: safety mat





Warranty:

One year limited warranty with lifetime support; extended warranty available upon request at additional cost.


After-sale service:

 On site installation and trainning are avaiable at extra cost.

 Technical support



Certificate: China official third-party calibration report / CE Certification

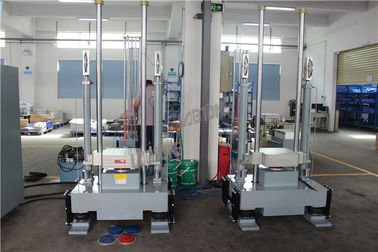

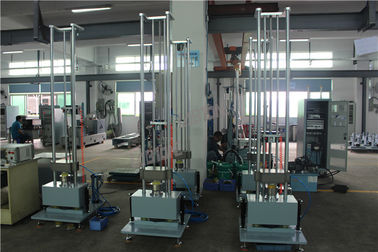

Production:



Shock Mechanical Testing Equipment With Payload 10kg , Table Size 20*25 Cm



Shock Mechanical Testing Equipment With Payload 10kg , Table Size 20*25 Cm
