|Drop Height:||300-1500mm||Specimen Weight:||85kg|
|Specimen Dimension:||800*800*800mm||Drop Mode:||Freedom|
|Machine Dimension:||1700*1200*2150mm||Machine Weight:||450kg|
|Warranty:||12 Months||Air Pressure:||0.5-0.7Mpa|
|Standard:||ISTA, IEC ,ASTM, GB||Name:||Packaging Drop Test Machine With Drop Height 150 Cm Steel Base: 100 X 150 Cm|

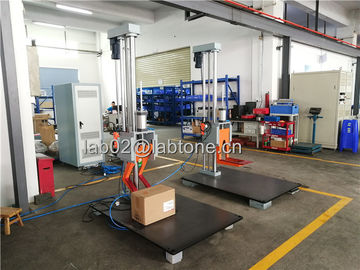

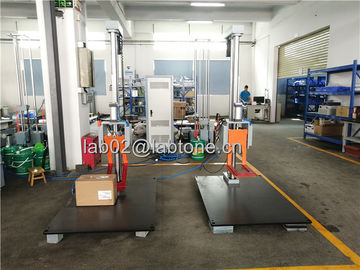

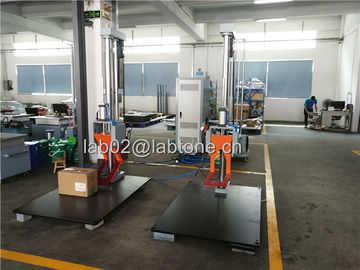

Packaging Drop Test Machine with Drop Height 150 Cm Steel base: 100 x 150 Cm
LABTONE is a very reliable and professional manufacturer of drop testing machines. A product through R & D design, manufacturing and even packaging shipment, must have strict quality control. This test machine systematically analyzes and digitizes the case of impact due to fall or collision during transportation. Therefore, in order to keep the package intact and avoid the damage, the design of packaging material is very important. We provide the basis for the design of cushioning packaging for the test value of the package.
|Drop height range (mm)||300---1500||300----2000|
|Specimen max.weight (kg)||85||85|
|Specimen max. size (mm)||800*800*800||800*800*800|
|Machine Dimension (mm)||1500*1000*2150||1700*1200*2750|
|Machine weight (kg)||480||550|
|Power supply||AC220V 50Hz compressed air 0.5~0.7Mpa|
|Standards||ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27
Functions and Features
1 Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
2 Can perform surfaces, corner and edge drops.
3 Precise guiding system and pneumatical driving;
4 Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;
5 With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm, such that the movement is stable, reliable with low noise
6.Self-locking screw in lifting mechanism to prevent accidental downward glide.
7.Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
8.Extensible support bracket and steel base plate.
