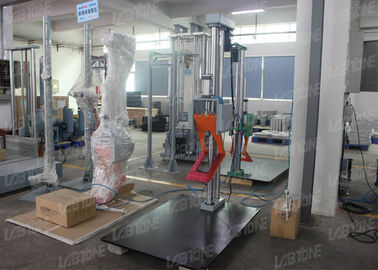

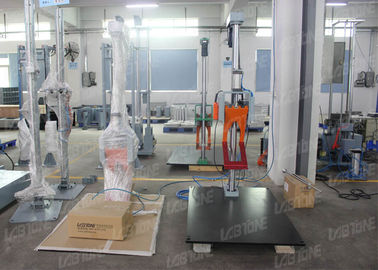

1.5m Packaging Drop Test Machine For Laboratory Comply To ISTA Standard

1.5m Packaging Drop Test Machine  For Laboratory  Comply To ISTA Standard
1.5m Packaging Drop Test Machine  For Laboratory  Comply To ISTA Standard 1.5m Packaging Drop Test Machine  For Laboratory  Comply To ISTA Standard

Large Image :  1.5m Packaging Drop Test Machine For Laboratory Comply To ISTA Standard

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: DT150
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 50 Sets / Month

1.5m Packaging Drop Test Machine For Laboratory Comply To ISTA Standard

Description
Product Name: Drop Test Equipment Specimen Weight: 85kg
Specimen Dimension: 800*800*800mm Drop Mode: Freedom
Machine Dimension: 1200*1500*2100mm Machine Weight: 480kg
Drop Height: 300-1500mm
High Light:

drop test equipment

,

drop weight impact testing machine

1.5m Drop Height Packaging Drop Test Equipment For Lab Drop Test Comply To ISTA Standard





Product Introduction



Packaging drop test is used to determined the effect of impact on the package during use,transportation,loading and unloading. The strictly designed LABTONE “1G+” ensure its accuracy. Apart from accurate plane fall test,it can also perform edge drop and corner drop test to make a complete evaluation on the performance of packaging and product.





Specifications


Model DT150 DT200
Drop height range (mm) 300-1500 300-2000
Specimen max.weight (kg) 85 85
Specimen max. size (mm) 800*800*800 800*800*800
Drop mode Freedom
Machine Dimension (mm) 1000*1500*2100 1200*1700*2600
Machine weight (kg) 480 550
Power supply AC220V 50Hz compressed air 0.5~0.7Mpa
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27



Features


  • Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards;
  • Can perform surfaces, corner and edge drop;
  • Precise guiding system and is driven pneumatically;
  • Unique swing arm structural design, escape acceleration of swing arm detachment greater than 3G;
  • With double column guide, hydraulic buffer absorb the force of the swing arm, the movement is stable, reliable and with low noise;
  • Self-locking screw in lifting mechanism to prevent abnormal detachment of swing arm;
  • Extensible support bracket and bottom slab.




Packaging & Shipping


Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc




FAQ


How do you attach the hardware you’re testing to your shaker?

By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.


How do you control shakers?

If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.


What are those resonances?Are they bad?

Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
