Product Details:
|
| Model: | HSKT25 | Table Size: | 300 X 300 Mm |
|---|---|---|---|
| Specimen Max Weight: | 25 Kg | Shock Pulse: | Half Sine |
| Acceleration Range: | 20-10000 G | Pulse Duration Range: | 0.2~18 Ms |
| High Light: | mechanical testing equipment,vibration and shock testing |
||

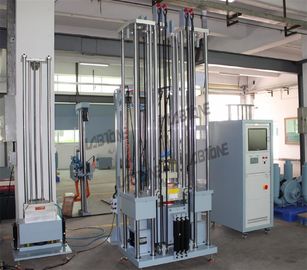

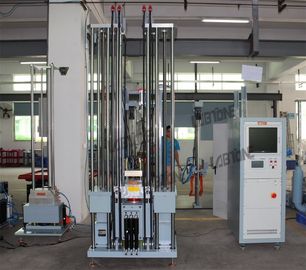

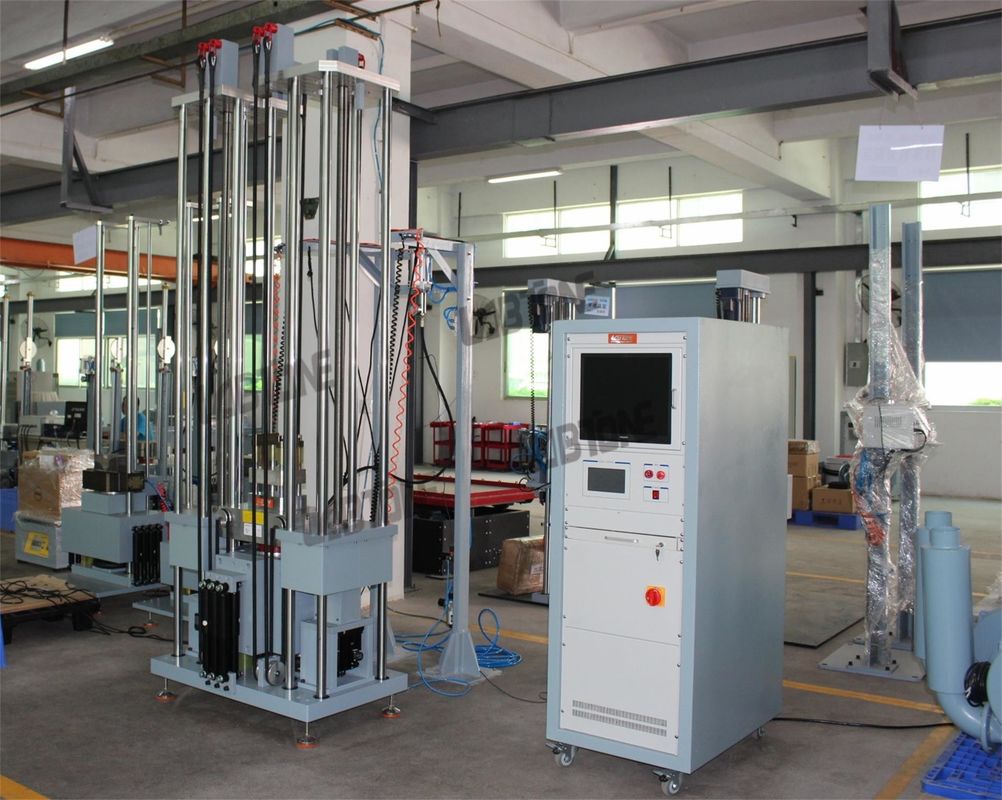

ISO 17025 Accredited Mechanical Shock Test Equipment with 10000G Acceleration
Main applications: mobile phones, computer components, optical components, connectors, etc, also used to test the shock absorbance ability of materials
Light emitter and light receptor will detect presence of human in danger zone. Operation will be stopped to protect personal safety.
Device used for ground protection in danger zone by producing an on/off signal through detection of sufficient pressure in order to secure the safety of the area.
The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.
Specifications
| Model | HSKT10 | HSKT25 |
| Table size (mm) | 200x250 | 300x300 |
| Shock pulse | Half sine | |
| Maximum Specimen Weight(Kg) | 10 | 25 |
| Acceleration Range(G) | 20 ~ 2000 | 20 ~ 10000 |
| Pulse Duration (ms) | 0.2~18 | 0.2~18 |
| Machine Dimension(cm) | 660x700x2380 | 1350x1250x3300 |
| Utility Requirements | AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | |
| Machine Weight(Kg) | 820 | 1850 |
Main performance:
Equipment composition:
| No. | Equipment name | Model | Brand | Qty. |
| 1 | Main equipment | HSKT25 | LABTONE | 1 set |
| 2 | Shock controller | SKC-2 | LABTONE | 1 set |
| 3 | Dual Mass Shock Amplifier | D-3 | LABTONE | 1 set |
| 4 | Shock measurement device | ST-16 | LAB | 1 set |
| 5 | Accelerometer (Sensor) | 3133A5 with connecting cable | DYTRAN | 3 set |
| 6 | Accelerometer (Sensor) | 3200B2T with connecting cable | DYTRAN | 1 set |
| 7 | Control computer | brand computer | 1 set | |
| 8 | Waveform Generator | HB01 | LABTONE | 1 set |
| 9 | Safety device | Audible and visual alarm | LABTONE | 1 set |
| 10 | Attached accessories | Tools, clamps/instructions, installation disc, etc. | LABTONE | 1 set |
Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
Packaging:
bubble bag + vacuum package + plywood case
