ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table

ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table
ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table

Large Image :  ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table

Product Details:
Place of Origin: China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV210
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table

Description
Frequency Range: 2 - 3000 Hz Rated Force: 10 KN
Output Power: 12 KVA Output Voltage: 100 V
Output Current: 100 A Amplifier Dimension: 800×550×1520 Mm
High Light:

vibration test table

,

vibration lab equipment



ASTM D4728 Standard Vibration Test Equipment with Vertical and Horizontal Table





Introduction:



The working principle of the electromagnetic vibration exciter is similar to a loudspeaker whereby electrical conductor is moved by the action of electromagnetic force in the magnetic field. The force to accelerate the moving part is generated by the balance between driving current and magnetic flux. Therefore, by controlling the driving current, one can control the vibration generator.




Features:

  • Dual magnetic structure;
  • Frameless armatures;
  • Pneumatic load support;
  • Rugged trunnion design with air isolation;
  • Active armature suspension system;
  • Small waveform distortion, high carrying capacity, good guidance quality;
  • Protection functions for safety interlock;
  • Good compatibity with slip table head expander, climatic test chamber, air isolation mounts, etc.



Calculate Formular for Exciting Force:



ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table 0





Specifications:



Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35





How to select a Vibration Testing Equipment:

  1. Determine the Frequency Range of the test and the extreme Peak motions (Acceleration, Velocity and Displacement) from the Test Specification. Depending upon the type of test (Swept Sine, Random, or Classical Shock for example) you will perform different calculations to accomplish this.

  2. From the Device Specifications determine the mass of the device under test (DUT) and the dimensions of the mounting surface required to bolt the DUT to a shaker table with its center of gravity (CG) over the table’s center. This may require use of a head expander and/or other mounting fixture. Determine the mass of such additional hardware including all mounting fasteners.

  3. Look at the Shaker Specifications of a trial system. Verify that the mass of the DUT and any mounting fixtures are less than the shaker’s rated Maximum Static Payload. Verify that the DUT (or its mounting hardware) can be bolted to the shaker’s armature or head expander. Add the Effective Armature Mass and head expander mass to the DUT mass and the mass of any mounting fixtures and fasteners and any accelerometers mounted to the DUT – this is the Total Moving Mass that must be moved by the shaker during the test. Multiply the Total Moving Mass by the Acceleration determined in step one to calculate the Force required. Verify the determined test Frequency Range, Force, Peak Acceleration, Peak Velocity and Peak Displacement required by the test and DUT are all less than the corresponding performance ratings of the selected shaker system. If this is true, the selected shaker is acceptable. If not, a more powerful shaker is called for.

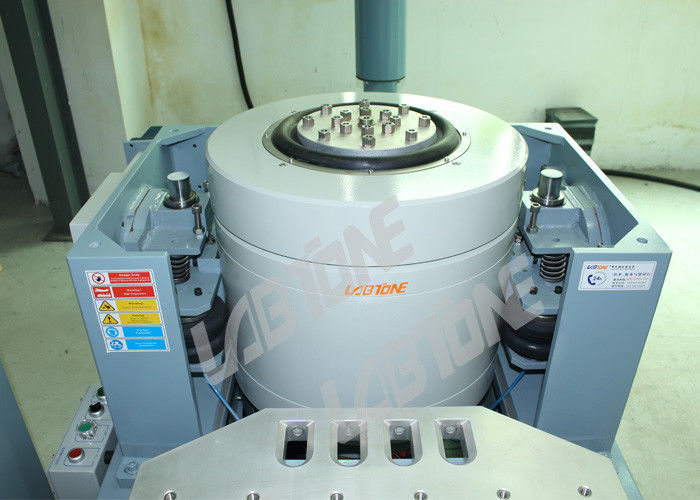

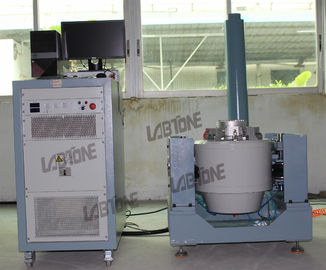

Detailed Picturers:



ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table 1



ASTM D4728 Standard Vibration Table Testing Equipment With Vertical And Horizontal Table 2
