Mechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11ms

China Mechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11ms supplier
Mechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11ms supplier Mechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11ms supplier Mechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11ms supplier Mechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11ms supplier

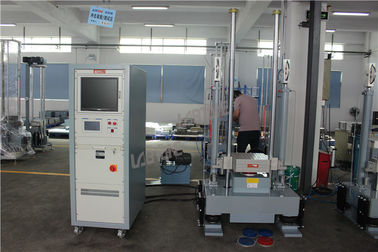

Large Image :  Mechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11ms

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT30A

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Name: Mechanical Shock Tst Machine With 50kg Payload Performs Half Sine 100g 11ms Table Size: 400 X 400mm
Specimen Max Weight(kg): 50kg Shock Pulse: Half Sine
Max. Acceleration Range (m/s2): 600g Pulse Duration Range (ms): 0.5~30

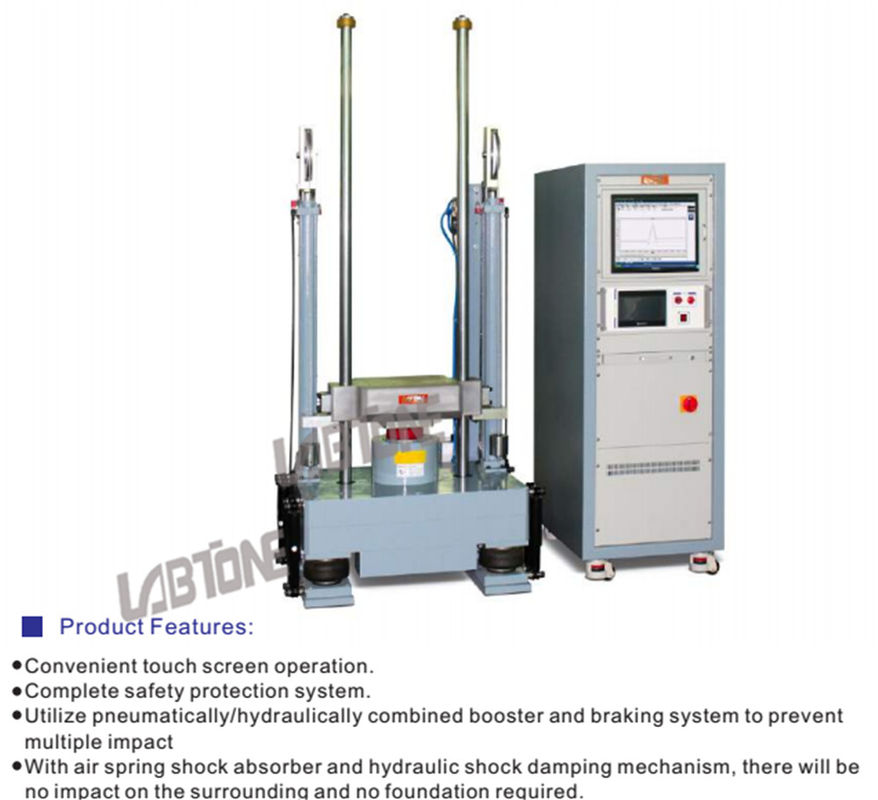

Mechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11ms



Product description



SKT series is the best solution in shock machine's to ensure prodcuts such as smartphones,tables.computers and other mobile devices are able to withstand shock. By appling high acceleration to computer parts, smart phones, tables. laptops,cellular phones. and various mobile products to conduct product fragility test.



Model HSKT10 HSKT10M G-HSKT15 G-HSKT30 G-HSKT35
Table Size(mm) 200 x 250 200 x 200 250 x 250 250 x 250 250 x 250

Max. Payload

(kg)

10 5 10 10 10
Shock Pulse Half Sine Wave
Acceleration Range(G)

20~2000



20~3000g

20~15000

20~30000

20~35000
Pulse Duration(ms) 0.2~18 0.1~11




Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table Size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Max. Specimen Weight(kg) 30 50 100 200 300 600 1000



Max.

Acceleration (G)

Half Sine 600 600 600 500 500 300 300
Saw-tooth 100 100 100 100 100 100 100
Square   150 150 150 100 100 100



Pulse duration

(ms)

Half Sine 30—0.5 30~1 30~1 30~2 20~3 20~3 20~3
Saw-tooth 18~6 18~6 18~6 18~6 18~6 16~6 18~6
Square   30~6 30~6 30~6 30~6 30~6 30~6
Controller cabinet dimension(cm) W55*D50*H80
Machine weight(Kg) 1900 2300 3200 4200 8500 15500 21500
Power supply 3(phase) AC380V 50/60Hz Compressed air 0.5~0.8MPa
Standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL



Equipment configuration



No. Equipment name Model Qty.
1 Shock tester table SKT30A 1 set
2 Hydraulic lifting mechanism   1 set
3 Controller SKC-2 1 set
4 Shock measurement device   1 set
5 Sensor   1 pcs
6 Control computer   1 set
7 Waveform generator Half sine wave/final peak saw tooth wave 1 set
8 Safety device Audible and visual alarm 1 set
9 Attached accessories Tools, clamps/instructions, installation disc, etc. 1 set



Purpose of Shock Testing

· The purpose of shock testing is to determine the fragility of products.

· Ruggedness is a desirable product characteristic.

· A certain amount of ruggedness is necessary for the product's proper functioning.

· Manual handling during distribution normally will "exceed" product ruggedness so protective packaging is usually required

· Shock testing can be useful to improve the ruggedness of designs and add value to the product

· Traditional shock fragility testing used SRS techniques because we lacked knowledge of what inputs were likely.

· SRS was well established in architecture and the building industry.




Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

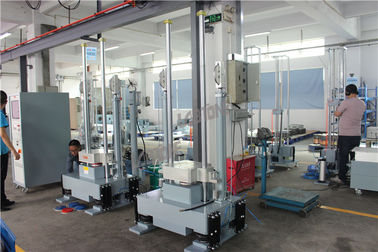

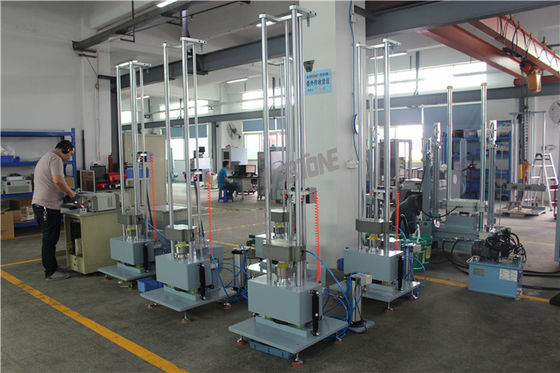

Our workshop :



Mechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11msMechanical Shock Tst Machine With 50kg payload Performs Half sine 100g 11ms
