Drop Test Machine For Laboratory Product Package Drop Testing

Description
Product Name: Drop Test Machine Specimen Weight: 85kg
Specimen Dimension: 800*800*800mm Drop Mode: Freedom
Machine Dimension: 1500*1000*2150mm Machine Weight: 480kg
Drop Height: 300-1500mm
High Light:

smartphone drop test

,

free fall drop test equipment

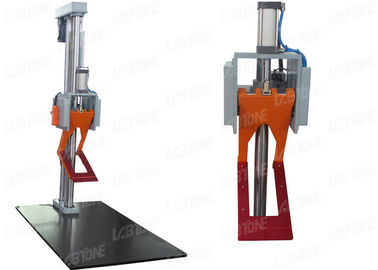

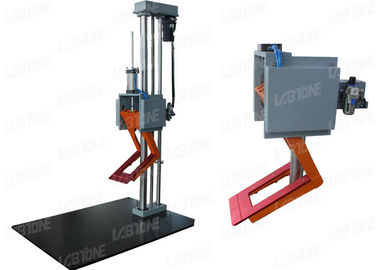

Drop Test Machine For Laboratory Product Package Drop Testing





Drop Test Machine Product Introduction



Packaging drop test is used to determined the effect of impact on the package during use,transportation,loading and unloading. The strictly designed LABTONE “1G+” ensure its accuracy. Apart from accurate plane fall test,it can also perform edge drop and corner drop test to make a complete evaluation on the performance of packaging and product.



Specifications



Model DT150 DT200
Drop Height Range (mm) 300-1500 300-2000
Specimen Max.Weight (kg) 85 85
Specimen Max. Size (mm) 800*800*800 800*800*800
Drop Mode Freedom
Machine Dimension (mm) 1500*1000*2150 1700*1200*2750
Machine Weight (kg) 480 550
Power Supply AC220V 50Hz compressed air 0.5~0.7Mpa
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27




Drop Test Machine Features

  • Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards;
  • Can perform surfaces, corner and edge drop;
  • Precise guiding system and is driven pneumatically;
  • Unique swing arm structural design, escape acceleration of swing arm detachment greater than 3G;
  • With double column guide, hydraulic buffer absorb the force of the swing arm, the movement is stable, reliable and with low noise;
  • Self-locking screw in lifting mechanism to prevent abnormal detachment of swing arm;
  • Extensible support bracket and bottom slab.Drop Test Machine For Laboratory Product Package Drop Testing 0
