Drop Test Equipment With Drop Height 1.2 meter for Consumer Electronics

Drop Test Equipment With Drop Height 1.2 meter for Consumer Electronics
Drop Test Equipment With Drop Height 1.2 meter for Consumer Electronics

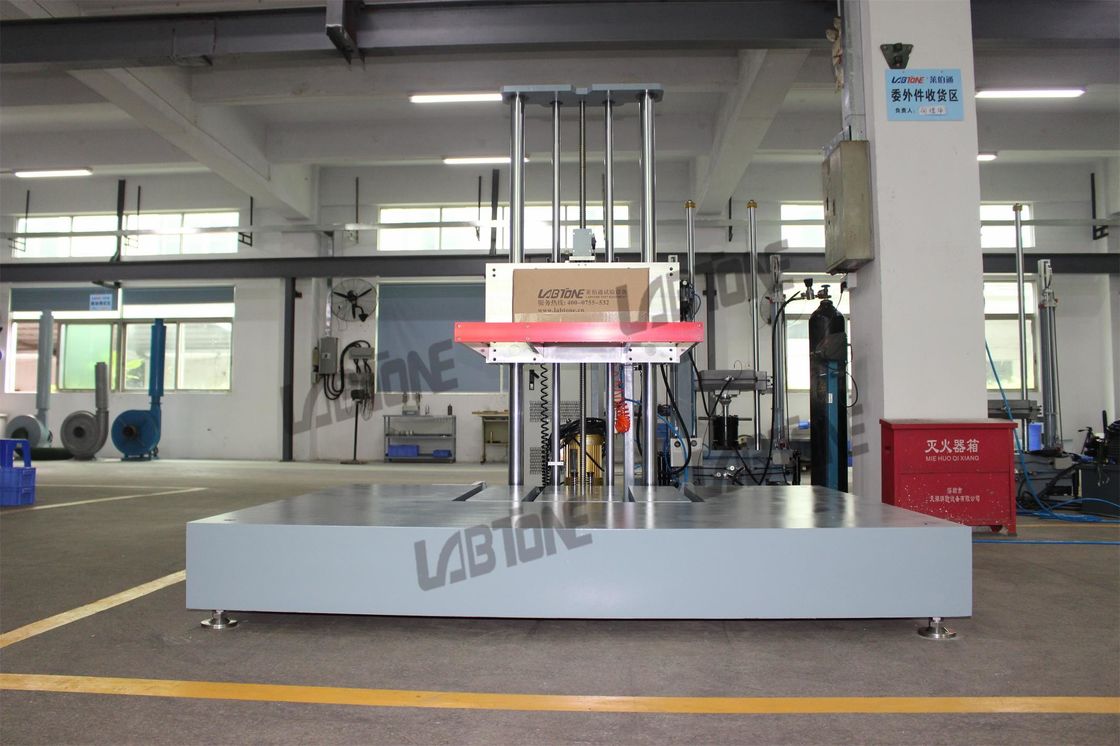

Large Image :  Drop Test Equipment With Drop Height 1.2 meter for Consumer Electronics

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: DT030

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 50 Sets / Month
Detailed Product Description
Drop Height: 0-1200mm Specimen Weight: 300kg
Specimen Dimension: 1200*1200*1200mm Drop Type: Free Drop
Machine Dimension: 2100*1700*2800mm Machine Weight: 2300kg
High Light:

package testing services


drop test equipment


Drop Test Equipment For Packaging Testing Of Consumer Electronics With ISTA Standard



Drop Tester Main Parameters


  • Drop height range: 0 to 1500mm
  • Max. load: 300kg
  • Height display: LCD
  • Machine type: E-shaped Fork
  • Control means: PLC and touch panel
  • Setting method: touch panel
  • Drop mode: free drop
  • Height adjustment means: motor and precision ball screw
  • Volume of test specimen: 1200mm×1200mm×1200mm
  • Cushioning mechanism: Hydraulic Cushion + High Pressure Brake Device
  • Drop tester table’s dimensions (mm): 2100 (W) × 1700 (L) × 2800 (H)
  • Base plate dimensions (mm): 2000 (W) × 1600 (L) × 300 (H)
  • Power supply: three phase 380V/50HZ
  • Air pressure requirement: > 0.7MPa
  • Equipment weight: about 2300kg


Product Function


Drop tester for heavy packaged freight are mainly used for assessing the ability of large package products to bear drop in the process of handling, transport and loading and unloading, including design of a cushioning package, selection of packaging materials, fragility of package, goods in standard testing package (surface, angle and edge), etc. They are used for assessing the protection capability of packages for goods, thus providing a basis for package design, selection of cushioning materials for package, and improving the package design.



Operating Principle


The machine will move the drop platen which carrying the package under test to the set height, then freely fall the package at flat, edge and corner position. During test, the platen will drop at large than 1G acceleration to ensure the package performs free fall condition.

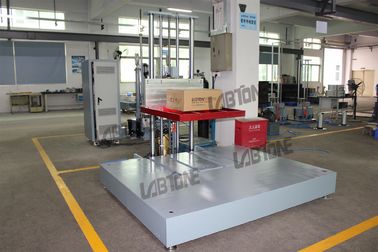

Drop Test Equipment With Drop Height 1.2 meter for Consumer Electronics 0
Product Description
For the massive packing goods and the mass is large, the vertical drop height is relatively low in the transportation and handling. So the Standard Free DropTest Equipment for Heavy Packaged Cargo is relatively low. This drop tester is mainly used for larger package drop test. Zero height drop tester use a quickly moves down E fork mounting as bracket. The specimen place balance as the test requirment(plane, edge,angle). When doing the test, the bracket do high-speed downward movement before the specimen, acceleration >3g, it need guarantee the bracket separate with the specimen and realize free fall. The standard drop height range is 2.54cm-120cm.



Model DT015 DT020 DT030
Drop height(mm) 0----1200 0----1200 0---1200
Specimen weight(KG) 150 200 300
Specimen dimension(mm) 1000*1000*1000 1200*1200*1200 1200*1200*1200
Drop type Free drop
Machine dimension(mm) 1900*1700*2800 2100*1700*2800 2100*1700*2800
Machine Weight(kg) 2500 3200 4500
Power supply 3 phase AC380V 50HZ
Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27



Equipment Configuration


No. Equipment name Model Qty. Description
1 Drop tester DT030 1 set
2 Pneumatic–hydraulic pressure cylinder   1 pcs
2 Controller   1 set
3 Edge and Corner Auxiliary Fixture   1 set
4 Connection cable   1 set



Labtone Service


Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer lable

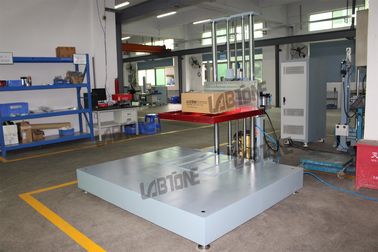

Detailed Picturers:


Drop Test Equipment With Drop Height 1.2 meter for Consumer Electronics 1
