Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item

Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item
Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item

Large Image :  Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE,ISO
Model Number: ET50
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: International Wooden case
Delivery Time: 45 working days
Contact Now

Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item

Description
Sine Force: 50kg.f(500N) Random Force: 38kg.f(380N)
Displacement: 10mm Max Acceleration: 37g
Effective Load: 10kg Max.Velocity: 1.2 M/s
Name: Small Vibration Test Machine For Transportation Simulation Random Vibration Test
High Light:

packaging testing equipments

,

vibration test table

Vibration Test Equipment Vibration Exciter for Scientific Research, Small Test Item







Minitype Vibration Test System



With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.



Features:

  • Apply to the calibration of high precision vibration meter, mechanical impedance test, vibration analysis of the vibration source.
  • Apply to the vibration test of various small and lightweight parts such as sensor, electronic, electric machines and etc.
  • Apply to the basic test of vibration engineering of educational equipment.



Composition:



Compose of vibration generator, power amplifier, vibration controller, signal generator, acceleration sensor

Vibration Test Machine Specification:

EV50 electrodynamic shaker
Max. sine exciting force 50Kg.f peak (500N)
Max. random exciting force 38Kg.f r.ms (380N)
Frequency range 2～3800Hz
Max. displacement 10 mm p-p
Max. velocity 1.2m/s
Max. acceleration 37G (380 m/s2)
Effective load 10kg
Vibration isolation frequency 2.5 Hz
Diameter of armature Ф170 mm
Mass of armature 1.2kg
Shaker dimensions DIA 270 * H195mm
Weight About 45Kg
VA-ST-05 Analog power amplifier
Output power 800va
Output voltage 38VRMS
Amplifier cabinet dimension 430mm×200mm×500mm
Servo protection system
Functions: FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP
vibration controller
Hardware configuration: 2-channel inputs, 1-channel outputs
Control computer Acer
Function

1,Sine Control

2,Ramdom Control



Language:English,Chinese
Operating system Microsoft Windows 7/8/10
Acceleration sensor LAB

Frequency range:1—12KHz

Sensitivity: 30 ±10 pC/g

Temperature range: -40℃ to 160℃
BL-120 cooling blower (including silencer)
Cooling method Air cooling
Blower power 200W
Electrical requirements:
Power supply AC 220V ±10%, 50Hz
Ground resistance ≤4Ω



Vibration Test Machine Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

.



After-Sales Service

  • Training how to instal the machine, training how to use the machine.
  • Engineers available to service machinery overseas.



Detailed Pictures

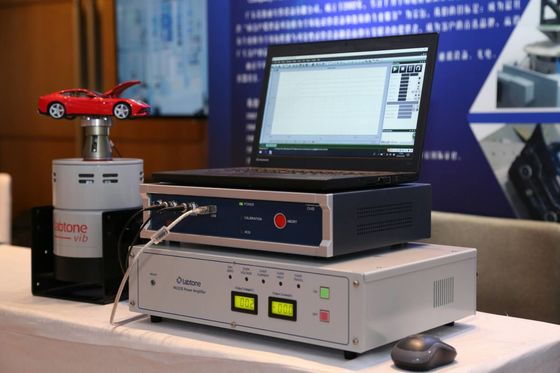

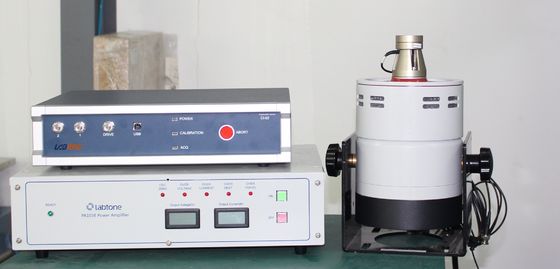

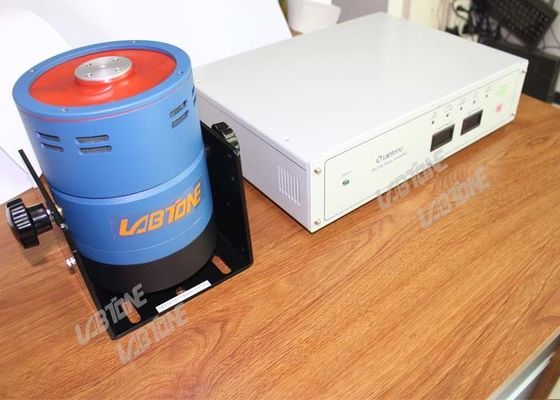

Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item 0Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item 1Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item 2

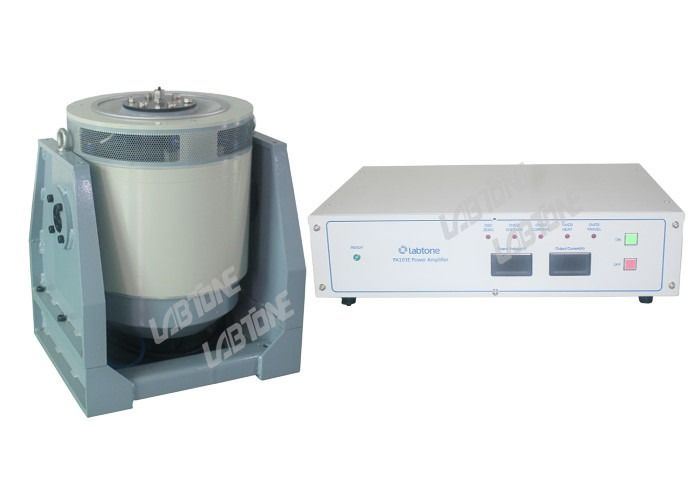

Vibration Table Test Equipment Vibration Exciter for Scientific Research , Small Test Item 3
