|Product Name:||Electrodynamic Shaker Systems||Frequency Range:||2-3000 Hz|
|Max. Displacement:||51mm||Max. Velocity:||200 Cm/s|
|Payload:||200 Kg||Power Supply:||AC 3-phase 380V / 50Hz|
|Max Exitinag Force:||600kgf|
vibration test table,
vibration lab equipment

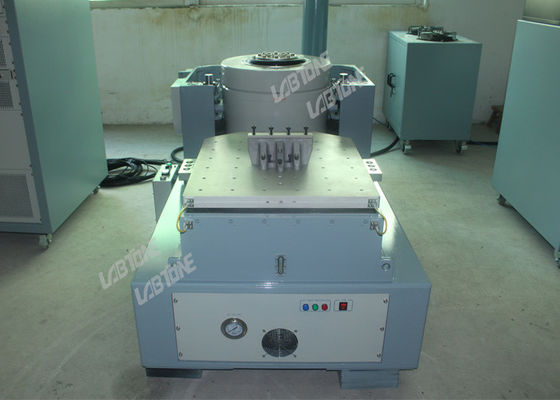

Electrodynamic Shaker Systems Vibration Testing Table For New Product Shake Test
|Frequency range (Hz)||2-3000|
|Max sine force (Kg/KN)||600/6|
|Cooling method||forced cooling|
|Power amplifier model||Apm6k|
|Power amplifier weight(kg)||320|
|Power supply||3PH AC380v±10% 50Hz|
|Aggregate capacity power||20KW|
Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.
How do you attach the hardware you’re testing to your shaker?
By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.
How do you control shakers?
If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.
What are those resonances?Are they bad?
Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
