Product Details:
|
| Drop Height: | 300-1500mm | Specimen Weight: | 85kg |
|---|---|---|---|
| Specimen Dimension: | 800*800*800mm | Drop Mode: | Free Fall |
| Machine Dimension: | 1700*1200*2750mm | Machine Weight: | 550kg |
| Warranty: | 12 Months | Air Pressure: | 0.5-0.7Mpa |
| Name: | Package Test Drop Test Machine Meets ISTA 3A , ASTM, ISO, MIL STD Standard | ||
| Highlight: | package testing services,drop test equipment |
||
Package Test Drop Test Machine Meets ISTA 3A , ASTM, ISO, MIL STD Standard

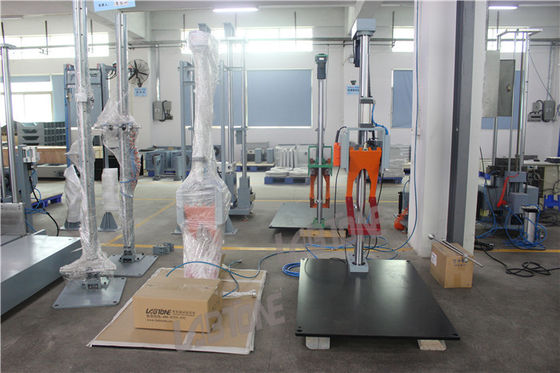

Drop Test Machine Description
Labtone is the leading Manufacturer of drop test machine. DT series of drop testers represent the ultimate dimension in product and package performance testing and are designed to meet wide variety of global testing needs.Drop test machine helps determine the ruggedness of packages and effectivness of their interior cushioning when exposed to impact during material handling. The effects of droping are easily duplicated in your laboratory using the controlled and precise flat, corner, and edge drop tests.
High Accuracy Drop Tester for Packaged Freight specifications
| Model | DT150 | DT200 |
| Drop height range (mm) | 300---1500 | 300----2000 |
| Specimen max.weight (kg) | 85 | 85 |
| Specimen max. size (mm) | 800*800*800 | 800*800*800 |
| Drop mode | Freedom | |
| Machine Dimension (mm) | 1500*1000*2150 | 1700*1200*2750 |
| Machine weight (kg) | 480 | 550 |
| Power supply | AC220V 50Hz compressed air 0.5~0.7Mpa | |
| Standards | ISTA 6A, ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 |
|
Drop test machine performs face,corner and edge drop tests to evaluate the integrity and protective performance of the packaging. It contribute to promote the packing material and product’ strength.
Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
High Accuracy Drop Tester for Packaged Freight Features
1 Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
2 Can perform faces, corner and edge drop tests.
3 Precise guiding system and pneumatical driving;
4 Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;
5 With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm, such that the movement is stable, reliable with low noise
6.Self-locking screw in lifting mechanism to prevent accidental downward glide.
7.Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
8.Extensible support bracket and steel base plate.
