Payment & Shipping Terms:
|Drop Height:||300-2000mm||Specimen Weight:||85kg|
|Specimen Dimension:||800*800*800mm||Drop Mode:||Freedom|
|Machine Dimension:||1700*1200*2750mm||Machine Weight:||550kg|
|Warranty:||12 Months||Air Pressure:||0.5-0.7Mpa|
|Name:||ISTA 6 FedEx A Drop Test Machine For Packaged Products Weight Up To 80kg|

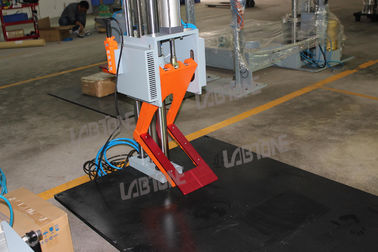

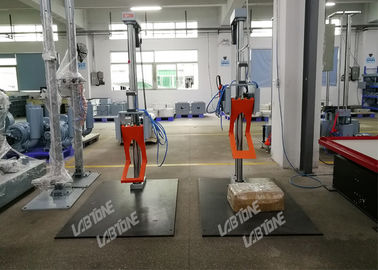

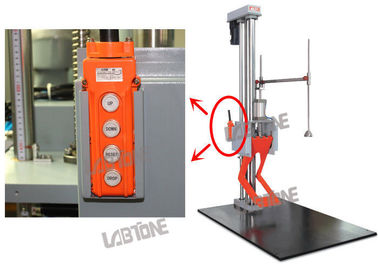

ISTA 6 FedEx A Drop Test Machine for Packaged Products Weight up to 80kg
High Accuracy Drop Tester for Packaged Freight specifications
|Drop height range (mm)||300---1500||300----2000|
|Specimen max.weight (kg)||85||85|
|Specimen max. size (mm)||800*800*800||800*800*800|
|Machine Dimension (mm)||1500*1000*2150||1700*1200*2750|
|Machine weight (kg)||480||550|
|Power supply||AC220V 50Hz compressed air 0.5~0.7Mpa|
|Standards||ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27|
High Accuracy Drop Tester for Packaged Freight Description & Application
Drop test machine performs surface,corner and edge drop tests to evaluate the integrity and protective performance of the packaging. It contribute to promote the packing material and product’ strength.
Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
High Accuracy Drop Tester for Packaged Freight Features
1 Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards.
2 Can perform surfaces, corner and edge drop tests.
3 Precise guiding system and pneumatical driving;
4 Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;
5 With double column guide, hydraulic buffer will absorb the dynamic force of the swing arm, such that the movement is stable, reliable with low noise
6.Self-locking screw in lifting mechanism to prevent accidental downward glide.
7.Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
8.Extensible support bracket and steel base plate.
