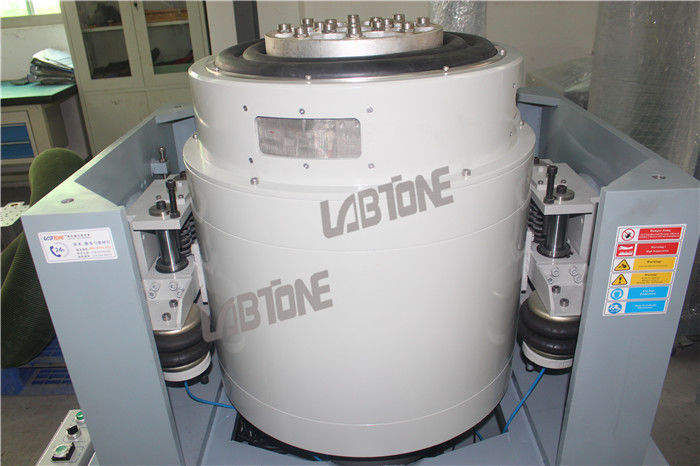

Vibration Test Equipment for Transportaion Simulation Test of Car Battery

Vibration Test Equipment for Transportaion Simulation Test of Car Battery
Vibration Test Equipment for Transportaion Simulation Test of Car Battery Vibration Test Equipment for Transportaion Simulation Test of Car Battery Vibration Test Equipment for Transportaion Simulation Test of Car Battery

Large Image :  Vibration Test Equipment for Transportaion Simulation Test of Car Battery

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV420
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Vibration Test Equipment for Transportaion Simulation Test of Car Battery

Description
Name: Vibration Test Equipment For Transportaion Simulation Test Of Car Battery Random Force: 2000 Kg.f(20kN)
Shock Force: 4000 Kg.f (40kN) Amplitude: 100mmp-p
Armature Diameter: ¢320 Mm Armature Weight: 23kg
Max. Payload: 500kg Frequency Range: 2-3000Hz
High Light:

packaging testing equipments

,

vibration lab equipment

Vibration Test Equipment for Transportaion Simulation Test of Car Battery​









Vibration Test Equipment standards : MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Vibration Test Equipment Main Features



  • 1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • 2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
  • 3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
  • 4) Quick self-diagnosis with safety interlock, high safety reliability
  • 5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
  • 6) Horizontal and vertical expansion platforms for different applications
  • 7) Simple controller operation


Vibration Test Equipment Working Principle:



Vibration Test Equipment for Transportaion Simulation Test of Car Battery 0







Specifications: EV340-EV450



Model EV340 EV350 EV420 EV430 EV440 EV450
Vibration Generator VG4000/76 VG5000/76 VG2000/100 VG3000/100 VG4000/100 VG5000/100
Frequency(Hz) 2-2500 2-2500 2-3000 2-2500 2-2500 2-2500
Max Exiting Force(kg.f) 4000 5000 2000 3200 4000 5000
Max. Displacement (mmp-p) 76 76 100 100 100 100
Max. Acceleration(g) 80 100 90 71 66 71
Max. Velocity(cm/s) 200 200 200 250 250 250
Payload(kg) 1000 1000 500 500 800 1000
Armature Mass(kg) 50 50 23 45 60 70
Armature Diameter(mm) φ440 φ440 φ320 φ400 φ445 φ445
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 3500 3800 2000 3200 4200 4500
Vibration Generator Dimension L*W*H(MM) 1100*1300*1520 1100*1300*1520 850*1000*1100 1100*1300*1440 1100*1300*1520 1100*1300*1520
Power Amplifier Amp55k Amp70k Amp25k Amp40k Amp60k Amp70k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 800 900 550 600 800 900
Power Amplifier Dimension L*W*H(MM) 800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 80 90 45 64 85 85






Vibration Test Equipment  services :



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.







Detalied Pictures:

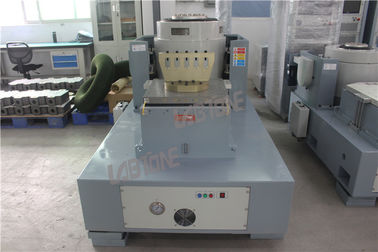

Vibration Test Equipment for Transportaion Simulation Test of Car Battery 1

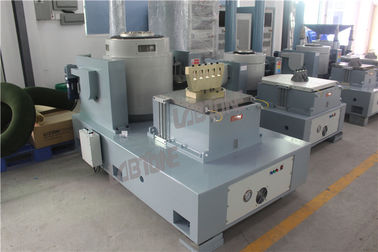

Vibration Test Equipment for Transportaion Simulation Test of Car Battery 2
