Product Details:
|
| Model: | HSKT10D | Table Size: | 510 X 510 |
|---|---|---|---|
| Specimen Max Weight(kg): | 10 | Shock Pulse: | Half Sine |
| Acceleration Range (m/s2): | 20----30000 | Pulse Duration Range (ms): | 0.2~11 |
| High Light: | mechanical testing equipment,vibration and shock testing |
||

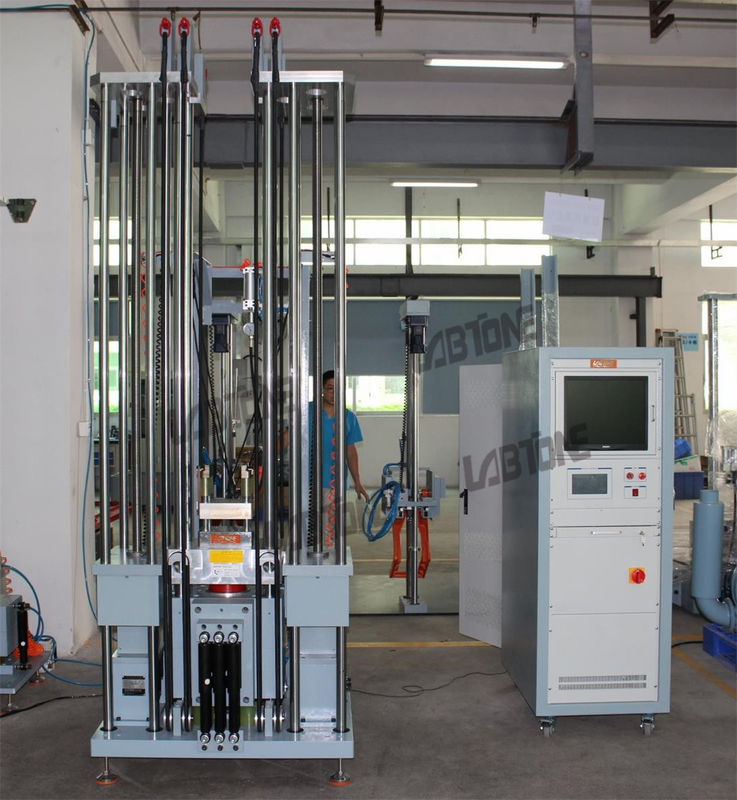

Half Sine Wave Mechanical Shock Test Equipment For Camera Testing
Main applications: mobile phones, computer components, optical components, connectors, etc, also used to test the shock absorbance ability of materials
Light emitter and light receptor will detect presence of human in danger zone. Operation will be stopped to protect personal safety.
Device used for ground protection in danger zone by producing an on/off signal through detection of sufficient pressure in order to secure the safety of the area.
The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.
Main performance:
Technical Parameters:
| MODEL | HSKT10 | G-SKT10D |
| Table Size(mm) | 200×200 | 250×200 |
| Max. Payload(Kg) | 10 | 10 |
| Shock Pulse | Half Sine Wave | Half Sine Wave |
| Acceleration Range(G) | 20---1500 | 20---10000 |
| Pulse Duration(ms) | 0.5～18 | 0.1～18 |
| Max. Drop Height(mm) | 1800 | |
| Machine Dimension(mm) | 600×550×2500 | 900×700×2750 |
| Power Supply | AC220V 50Hz 5A, Compressed Air: more than 0.5Mpa | |
| Machine Weight(kg) | 650 | 1100 |
Equipment composition:
| No. | Equipment name | Model | Qty. |
| 1 | Shock tester table | HSKT10 | 1set |
| 3 | Controller | SKC-1 | 1 set |
| 4 | Shock measurement device | ST-2 | 1 set |
| 5 | Sensor | LAB | 1pcs |
| 6 | Control computer | 1 set | |
| 7 | Waveform generator | HB01 | 1 set |
| 8 | Safety device | Audible and visual alarm | 1 set |
| 9 | Attached accessories | Tools, clamps/instructions, installation disc, etc. | 1 set |
Warranty: 12 months from delivery, lifelong time maintainance.
After-sale service: feedback within 4-8 hours after get the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
Company Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
Packaging:
bubble bag + vacuum package + plywood case
