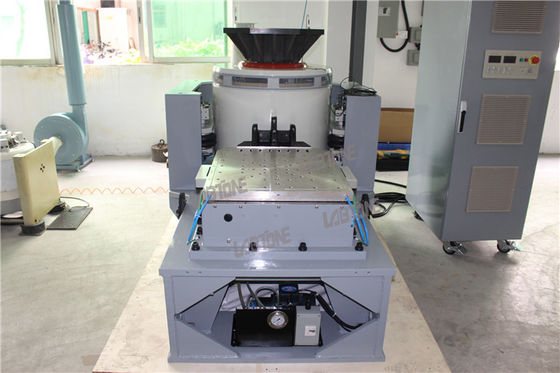

High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table

High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table
High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table

Large Image :  High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV232
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now

High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table

Description
Name: High Frequency 32kN Force Vibration Test Equipment Meet IEC ISTA MIL-STD Standard Random Force: 3200 Kg.f(32kN)
Shock Force: 6400 Kg.f (64kN) Amplitude: 51
Armature Diameter: ￠320 Mm Armature Weight: 30kg
Max. Payload: 400kg
High Light:

packaging testing equipments

,

vibration test table

High Frequency 32kN Force Vibration Test Equipment Meet IEC ISTA MIL-STD Standard




Vibration Test Equipment Main Features



  • 1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • 2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
  • 3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
  • 4) Quick self-diagnosis with safety interlock, high safety reliability
  • 5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
  • 6) Horizontal and vertical expansion platforms for different applications
  • 7) Simple controller operation


Vibration Test Equipment Working Principle:



High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table 0







Vibration Test Equipment Specifications: EV103-EV220



Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements		 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35

Vibration Test Equipment Manufacturer





Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.



Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.



Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.



We sincerely invite you to visit our factory.



Vibration Test Equipment standards : MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.







Vibration Test Equipment  services :



Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.







Detalied Pictures:

High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table 1



High Frequency Vibration Table Testing Equipment , 32kN Force Vibration Testing Table 2
