Product Details:
|
Rated Force: | 600 Kg | Max. Velocity: | 200 Cm/s |
---|---|---|---|
Maximum Displacement: | 51 Mm | Cooling Method: | Air Cooling |
Payload: | 100 Kg | Power Amplifier: | 3-phase AC 380V 50Hz |
Highlight: | vibration testing services,vibration shaker system |

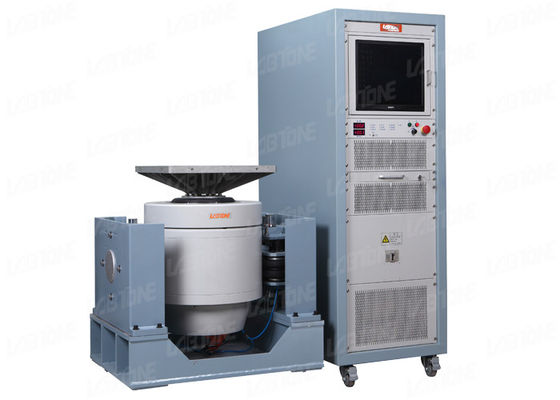

100g Accelerated Vibration Testing System Meets Vibration Standards Test for Mils Std 167-1A
Product Application
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
Test requirements and model selection guide
To choose a suitable vibration test system, the most important thing is to know the exciting force required to perform the vibration test. To evaluate and calculate the exciting force, the following test specifications should be known:
Working Principle:
Specifications:
Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 |
Vibration Generator | VG300/25 | VG300/40 | VG600/25 | VG300/50 | VG1000/50 | VG2000/50 |
Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 |
Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 |
Max. Displacement (mmp-p) | 25 | 38 | 25 | 50 | 50 | 50 |
Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 |
Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 |
Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 |
Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 |
Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 |
Cooling Method | Forced Air Cooling | |||||
Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 |
Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 |
Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k |
Cooling Method | Forced Air Cooling | |||||
Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 |
Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
Utility Requirements |
3-phase AC380V ±10% 50Hz | |||||
Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35 |
Customer Services
Presales:
In-Sales:
After-Sales:
Detailed Pictures:
