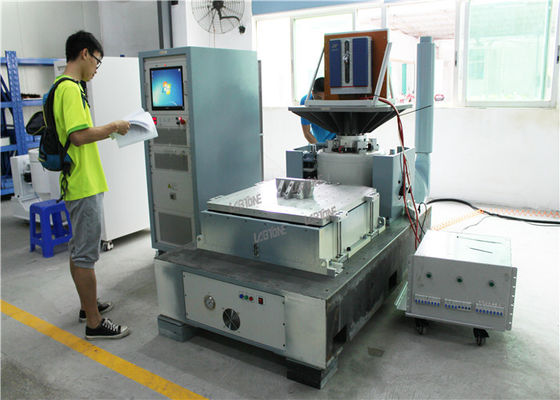

CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing

CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing
CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing

Large Image :  CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV203
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing

Description
Rated Sine Force: 3 KN Maximum Velocity: 120 Cm/s
Power Amplifier: Amp3k Payload: 120 Kg
Armature Mass: 3 Kg Power Supply: AC 380V 50Hz
High Light:

vibration testing services

,

vibration shaker system



CE Certificated Facotry Electro-dynamic Shaker for Battery Charger Testing





Applicable Standards:



MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries:



utomotive, Electronics, Aerospace, Vessel, Telecommunication, Pptoelectronics, Instrument etc.




Features:

  • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Perfect performance on amplitude variation.
  • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  • Rapid self-test diagnostics and chain safeguard, high high safety and reliability
  • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.



Working Principle:



CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing 0



CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing 1



Specifications: EV103-EV220



Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35





Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.





Detailed Pictures:



CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing 2



CE Approved Vibration Test System Electro Dynamic Shaker For Battery Charger Testing 3
