Product Details:
|
| Weight Capacity: | 200kg～1500kg | Power Required: | AC220V / 50Hz |
|---|---|---|---|
| Compressed Air: | 0.5 Mpa-0.7 Mpa | Lifting Device: | Customer Supplied |
| Machine Weight: | 16 Kg | Machine Size: | 345 X 235 X 145 Mm |
| High Light: | quick release drop tester,quick release hook drop test |
||

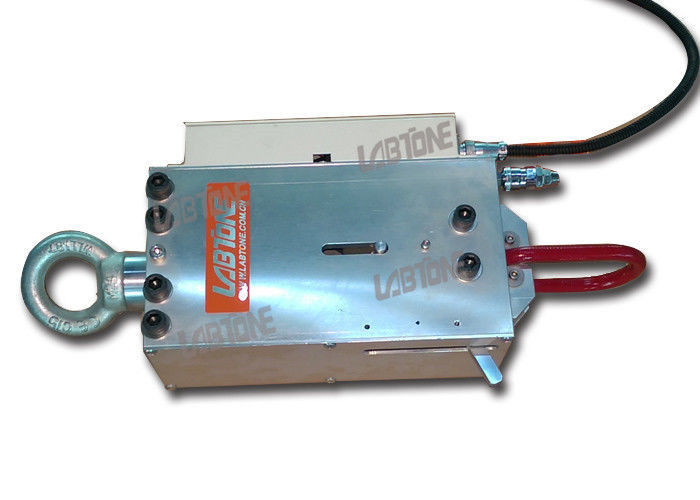

1500kg Payload Simple Drop Tester Release Hook with Foot Rease Switch
The KDT2000 Drop Tester is designed to simulate the drops and mechanical hazards that occur in distribution. It is especially suited to very large, heavy payloads which cannot be tested on conventional drop test machines.
The KDT2000 consists of a quick-release mechanism, lifting ring, and foot-switch for initiating the drop. Straps wrapped around the test item form a sling that attached to the O type ring, which is placed in the latch jaws of the quick-release mechanism. The quick-release mechanism and test package are then lifted to a pre-determined height by a fork-lift, winch, or other lifting device (not included). Press the Remote Foot-switch causing the latch jaws to open and the package to fall.
Technical Specification
| Model | KDT2000 |
|
Weight Capacity
|
200kg～1500kg |
| Power Required | AC220V / 50Hz ( or according to customer’s need) |
| Compressed Air | 0.5Mpa～0.7Mpa |
|
Lifting Device
|
Customer Supplied |
|
Device Weight
|
11kg ( excluding foot-switch, which is 5kg) |
| Decive Size | 345 x 235 x 145 mm |
| Size of foot-switch | 270 x 200 x220 mm ( Lx D x H) |
