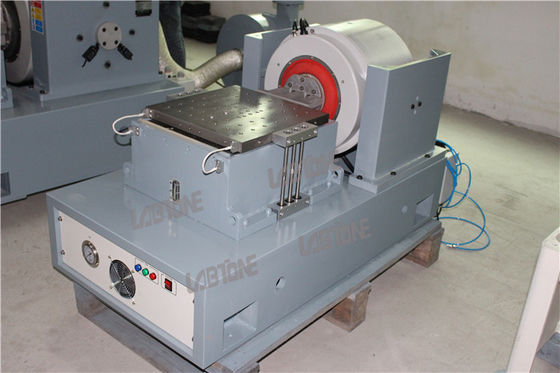

Electro-dynmaic Vibration Test System, Vibration Testing for Automobile Parts

Electro-dynmaic Vibration Test System, Vibration Testing for Automobile Parts
Electro-dynmaic Vibration Test System, Vibration Testing for Automobile Parts Electro-dynmaic Vibration Test System, Vibration Testing for Automobile Parts Electro-dynmaic Vibration Test System, Vibration Testing for Automobile Parts

Large Image :  Electro-dynmaic Vibration Test System, Vibration Testing for Automobile Parts

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV203

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Rated Sine Force: 300 Kg.f Random Force: 300 Kg.f
Shock Force: 600 Kg.f Max. Acceleration: 100G
Max. Velocity: 120cm/s Max. Displacement: 38 Mm
High Light:

vibration testing services

,

vibration shaker system



Electro-dynmaic Vibration Test System, Vibration Testing for Automobile Parts





Introduction



A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.





Specifications: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 1-2500 1-3000 1-3000 1-3000
Max Exiting Force(kg.f) 300 600 1000 2000
Max. Displacement (mmp-p) 38 50 50 50
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 200 300
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35




Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.




Features:

  • Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Perfect performance on amplitude variation.
  • High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  • Rapid self-test diagnostics and chain safeguard, high high safety and reliability
  • Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
  • Different application on the vertical and horizontal tables.
  • Simple operation for the controller.



Our Services:



Pre-sales service



 a. Technical Advisory: Testing method, laboratory planning and advice

 b. Equipment Selection: Type-selecting scheme,FAQ

 c. Product testing scheme



Selling service



 a. Customer Communication,progress communication

 b. Before installation, we will provide guidance of preparation , equipment         debugging, equipment commissioning

 c. Cooperate with measuring if need the third party verification



After-sale service



 a. Quality assurance period for one year,lifelong maintenance.

 b. Technical guidance

 c. Feedback within 2 hours after get the call.

 d. Accept OEM,Design service,Buyer lable
